Crystals

A H4 header

Crystals uCom description

Product Selector

Select your specific requirements to find the products you need.

CLEAR ALL Products: 78
Frequency
Product Type
Package
Package Height mm (<=)
Stability ppm (<=)
Calibration Tolerance ppm (<=)
Operating Temperature Range °C
Automotive Qualification
loading...

Product Type : Crystal

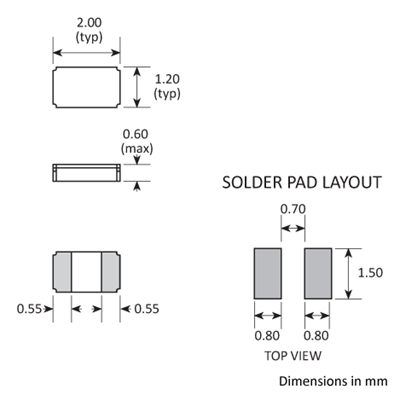

GWX-2012
2.05 x 1.2 x 0.6mm

GWX-2012

2012 Package 32.768kHz Watch Crystal

The ultra-miniature GWX-2012 measures just 2.0 x 1.2 x 0.60mm making it ideal for size-sensitive applications. GWX-2012 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 32.768kHz.

  • 32.768kHz
  • Competitive pricing for volume applications
  • Ultra low profile - 0.6mm high
  • Light weight miniature package
VIEW PRODUCT
The product image will be updated soon
3.5 x 2.2 x 0.9mm

CC6A-T1AH

SM Crystal -55+200°C
Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the miniature CC6A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 16.0-40.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 16.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
1.6 x 1.2 x 0.45mm

GRX-210

Automotive Crystal (AEC-Q200)
The smallest member of our dedicated automotive GRX range, the GRX-210 automotive crystal is available in frequencies from 26.0-40MHz and comes fully AEC-Q200 qualified as standard. The miniature ceramic package with seam sealed metal lid makes the GRX-210 particulalry ideal for tight-space applications that require excellent long-term stability.
  • 26.0 ~ 40.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
The product image will be updated soon
2.0 x 1.6 x 0.55mm

GRX-220

Automotive Crystal (AEC-Q200)
Part of our dedicated automotive GRX range, the GRX-220 automotive crystal is available in frequencies from 16.0-26MHz and comes fully AEC-Q200 qualified as standard. The miniature ceramic package with seam sealed metal lid makes the GRX-220 particulalry ideal for tight-space applications that require excellent long-term stability including vehicle telematics, connected car and in-car audio.
  • 16.0 ~ 26.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.6mm

GRX-320

Automotive Crystal (AEC-Q200)
Part of our dedicated automotive GRX range, the GRX-320 automotive crystal is available in frequencies from 12.0-40.0MHz and comes fully AEC-Q200 qualified as standard. The miniature ceramic package with seam sealed metal lid makes the GRX-320 particulalry ideal for tight-space applications that require excellent long-term stability including vehicle telematics, connected car and in-car audio.
  • 12.0 ~ 40.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
GRX-330
3.2 x 2.5 x 0.8mm

GRX-330

Automotive Crystal (AEC-Q200)
The GRX-330 automotive crystal continues to be the most popular component within our dedicated GRX automotive crystal range. Available in frequencies from 12.0-40.0MHz and fully AEC-Q200 qualified as standard, the industry-standard miniature ceramic package with seam sealed metal lid makes the GRX-330 particularly ideal for numerous automotive applications including vehicle telematics, connected car and in-car audio.
  • 12.0 ~ 40.0MHz
  • AEC-Q200 Qualified
  • Miniature 3.2x2.5mm package
  • Custom stabilities available
VIEW PRODUCT
GSX-113

GSX-113
VIEW PRODUCT
The product image will be updated soon
1.65 x 1.25 x 0.35mm

GSX-213

SM Crystal for NFC, Smartcard etc
The smallest crystal in our key product range, the ultra-minature ceramic package of the GSX-211 makes it ideal for space-dependant applications such as wearables, smartcard, NFC and bluetooth.
  • 26.0 ~ 60.0MHz
  • Ultra-miniature for maximum space saving
  • Ideal for near field communications (NFC), smartcard, wireless & mobile
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
2.05 x 1.65 x 0.6mm

GSX-223

SM Crystal
The GSX-223 ultra-miniature crystal is ideal for wireless and bluetooth applications. With a seam sealed package providing excellent longevity and tight calibration tolerance and temparture stability options, this crystal is ideal for new designs requiring an ultra-miniature crystal footprint.
  • 16.0 ~ 50.0MHz
  • Ultra-miniature for maximum space saving
  • Ideal for wireless & mobile applications
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
2.0 x 1.6 x 0.5mm

GSX-228

SM Crystal High Frequency Fundamental
Achieve fundamental mode frequencies of up to 315MHz in an ultra-miniature package with our GSX-228. Available in custom frequncies on short lead times, this crystal also features a ceramic body with gold plated pads for excellent longevity, and is available in a range of temperature stabilities, circuit conditions and operature temperature ranges, all customisable to your needs.
  • 20.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.6mm

GSX-323

SM Crystal for Bluetooth
The ultra-miniature GSX-323 measures just 2.5 x 2.0 x 0.6mm making it ideal for size-sensitive applications. GSX-323 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 12.0 ~ 54.0MHz.
  • 12.0 ~ 54.0MHz
  • Ideal for Bluetooth / Wireless applications
  • Seam sealed for excellent stability
  • Ultra-miniature for maximum space saving
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.7mm

GSX-328

SM Crystal High Frequency Fundamental
The ultra-miniature GSX-328 measures just 2.5 x 2.0 x 0.7mm making it ideal for size-sensitive applications. GSX-328 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 16.0 ~ 315MHz.
  • 16.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon
3.2 x 2.5 x 0.7mm

GSX-333

SM Crystal for Bluetooth / Wireless
The GSX-333 is available at high frequencies from 12.0 ~ 125MHz. GSX-333 also features a miniature package measuring 3.2 x 2.5 x 0.7mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 12.0 ~ 125MHz
  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent long-term stability
  • Ultra-miniature for maximum space saving
VIEW PRODUCT
The product image will be updated soon
3.2 x 2.5 x 0.8mm

GSX-338

SM Crystal High Frequency Fundamental
The GSX-338 is available at high frequencies from 10.0 ~ 315MHz. GSX-338 also features a miniature package measuring 3.2 x 2.5 x 0.8mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 10.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon
3.2 x 1.5 x 0.9mm

GRX-315

Automotive Watch Crystal (AEC-Q200)

Part of our automotive GRX range, the GRX-315 is our dedicated automotive 32.768kHz solution and comes fully AEC-Q200 qualified as standard. The GRX-315 offers particulalry competitive pricing for volume applications and low power consumption for minimal impact on design power budgets.

  • 32.768kHz
  • AEC-Q200 automotive qualified
  • Miniature ceramic package with metal lid
  • Vacuum seal for excellent long-term stability
VIEW PRODUCT
The product image will be updated soon
3.2 x 1.5 x 0.9mm

GSX-315

SM 32.768kHz Watch Crystal
Our most popular 32.768kHz solution, the GSX-315 offers highly competitive pricing and low power consumption (just 0.1uW typical) in a miniature vacuum sealed ceramic package.
  • 32.768kHz
  • Miniature ceramic package with metal lid
  • Vacuum seal for excellent long-term stability
  • Low cost for volume applications
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T1A

SM Crystal -55+125°C

The gold plated pads of the CC1A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 8.0-30.0MHz and in military standard operating temperature range of -55 to 125°C.

  • 8.0 ~ 30.0MHz
  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T1AH

SM Crystal -55+200°C

Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the CC1A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.

  • 8.0 ~ 24.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T3A

SM Crystal -55+125°C with Sn/Ag/Cu plated pads
The gold plated pads of the CC1A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 8.0-30.0MHz and in military standard operating temperature range of -55 to 125°C.
  • 8.0 ~ 30.0MHz
  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T3AH

SM Crystal -55+175°C with Sn/Ag/Cu plated pads
Available with extreme operating temperature ranges including -55 to 200°C, the CC1A-T3AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 8.0 ~ 24.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 175°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1F-T1A

SM Crystal -55+125°C High Frequency
With gold plated pads for excellent longevity and solderability, the inverted mesa technology within the CC1F-T1A allows this fundamental mode crystal to offer excellent shock and vibration resistance at frequencies up to 250MHz. With military operating temperature range of -55 to 125°C available the CC1F-T1A is an ideal crystal for high frequency military, avionics and down hole applications.
  • 30.0 ~ 250MHz
  • Fundamental up to 250MHz
  • Inverted mesa technology
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1V-T1A

SM Crystal -55+125°C Low Frequency
The gold plated pads of the CC1V-T1A offer excellent longetivity and solderability for applications requiring low frequencies. The CC1V-T1A crystal features excellent shock and vibration resistance and is available in frequencies from 10.0kHz-2.1MHz and is also available in military standard operating temperature range of -55 to 125°C.
  • 10.0kHz ~ 2.1MHz
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
  • Low frequency range
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T1A

SM Crystal -55+125°C
The gold plated pads of the CC2A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 10.0-70.0MHz and is also available with military standard operating temperature range of -55 to 125°C.
  • 10.0 ~ 70.0MHz
  • Suitable for Avionics, Sat Comms etc
  • Military temperature range -55+125°C option
  • High stability & low ageing
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T1AH

SM Crystal -55+200°C
Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the CC2A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 10.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T3A

SM Crystal -55+125°C with Sn/Ag/Cu plated pads
The gold plated pads of the CC2A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 10.0-70.0MHz and is also available with military standard operating temperature range of -55 to 125°C.
  • 10.0 ~ 70.0MHz
  • Suitable for Avionics, Sat Comms etc
  • Military temperature range -55+125°C option
  • High stability & low ageing
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T3AH

SM Crystal -55+175°C with Sn/Ag/Cu plated pads
Available with extreme operating temperature ranges including -55 to 200°C, the CC1A-T3AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 10.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 175°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The Golledge GVXO-523 VCXO
LL x WW x HHmm

CC5V-T1A

SM Watch Crystal -55+125°C

The two pad ceramic package CC5V-T1A with gold plated pads offers excellent solderability and shock and vibration performance at extremely low frequencies. The CC5V-T1A is available from 32.0-100.0kHz, is also optionally available with military operating temperature range of -55 to 125°C, and comes with low power consumption as standard.

  • 32.768kHz
  • TP Item 2
  • TP Item 3
  • TP Item 4
VIEW PRODUCT
The product image will be updated soon
3.5 x 2.2 x 0.9mm

CC6A-T1A

SM Crystal -55+125°C
The gold plated pads of the miniature CC6A-T1A offer excellent longetivity and solderability for specialist applications including avionics and satelite communications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 16.0-70.0MHz and in military standard operating temperature range of -55 to 125°C.
  • 10.0 ~ 70.0MHz
  • Suitable for Avionics, Sat Comms etc
  • Military temperature range -55+125°C option
  • High stability & low ageing
VIEW PRODUCT
The product image will be updated soon
3.5 x 2.2 x 0.9mm

CC6A-T3A

SM Crystal -55+125°C with Sn/Ag/Cu plated pads
The gold plated pads of the miniature CC6A-T1A offer excellent longetivity and solderability for specialist applications including avionics and satelite communications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 16.0-70.0MHz and in military standard operating temperature range of -55 to 125°C.
  • 10.0 ~ 70.0MHz
  • Suitable for Avionics, Sat Comms etc
  • Military temperature range -55+125°C option
  • High stability & low ageing
VIEW PRODUCT
The product image will be updated soon
3.5 x 2.2 x 0.9mm

CC6A-T3AH

SM Crystal -55+175°C with Sn/Ag/Cu plated pads
Available with extreme operating temperature ranges including -55 to 200°C, the miniature CC6A-T3AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 16.0-40.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 16.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 175°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
3.5 x 2.2 x 0.7mm

CC6F-T1A

SM Crystal -55+125°C High Frequency
Inverted mesa technology within the minitaure CC6F-T1A allows this fundamental mode crystal to offer excellent shock and vibration resistance at frequencies up to 250MHz. With military operating temperature range of -55 to 125°C available the CC6F-T1A is an ideal crystal for high frequency military, avionics and down hole applications.
  • 30.0 ~ 250MHz
  • Fundamental mode up to 250MHz
  • Inverted mesa technology
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon

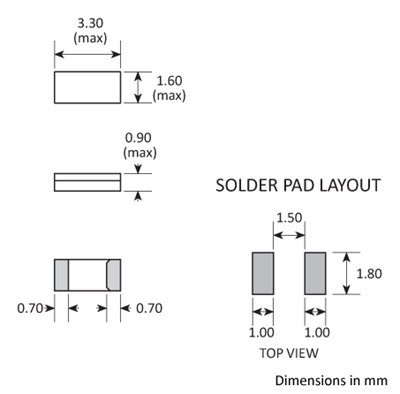

3.3 x 1.6 x 0.9mm

CC7A-T1A

SM Crystal -55+125°C
The gold plated pads of the minitaure CC7A-T1A offer excellent solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 24.0-50.0MHz and in military standard operating temperature range of -55 to 125°C. The CC7A-T1A also comes with low power consumption as standard.
  • 24.0 ~ 50.0MHz
  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
VIEW PRODUCT
The product image will be updated soon
3.3 x 1.6 x 0.9mm

CC7A-T3A

SM Crystal -55+125°C with Sn/Ag/Cu plated pads
The gold plated pads of the minitaure CC7A-T1A offer excellent solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 24.0-50.0MHz and in military standard operating temperature range of -55 to 125°C. The CC7A-T1A also comes with low power consumption as standard.
  • 24.0 ~ 50.0MHz
  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
VIEW PRODUCT
The product image will be updated soon
3.3 x 1.6 x 0.9mm

CC7V-T1A

SM Watch Crystal -55+125°C
With competitive pricing for high volume commercial projects, the CC7V-T1A 32.768kHz watch crystal is ideal for applications expected to reach high commercial numbers. Configure your specifications here.
  • 32.768kHz
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
  • Low power consumption
VIEW PRODUCT
The product image will be updated soon
3.2 x 1.5 x 0.65mm

CM7V-T1A

SM Watch Crystal

With optional AEC-Q200 qualification available, the CM7V-T1A surface mount crystal offers high shock and vibration resistance within a minature ceramic package with metal lid. Optional automotive and military operating temparture ranges means this 32.768kHz crystal is available for a wide range of applications.

  • 32.768kHz
  • Miniature ceramic package with metal lid
  • High shock & vibration resistance
  • Extended temperature range options
VIEW PRODUCT
The product image will be updated soon
3.2 x 1.5 x 0.35mm

CM7V03-T1A

SM Watch Crystal
This ultra-low-profiile 32.768kHz surface mount crystal comes in a miniature ceramic surface mount package with metal lid. Excellent shock and vibration performance, coupled with low power consumption as standard, makes this the ideal clock crystal for specialist applications requiring low board height.
  • 32.768kHz
  • Ultra low profile (0.38mm)
  • Miniature ceramic package with metal lid
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon
2.0 x 1.2 x 0.6mm

CM8V-T1A

SM Watch Crystal

The ultra-miniature CM8V-T1A offers a 32.768kHz solution with ultra-low profile package and high shock and vibration resistance. The CM8V-T1A is available in automotive and extended operating temperature ranges and with full AEC-Q200 qualification on request.

  • 32.768kHz
  • Ultra low profile - 0.6mm
  • High shock & vibration resistance
  • Extended temperature range option
VIEW PRODUCT
CM8V03-T1A
2.0 x 1.2 x 0.35mm

CM8V03-T1A

Ultra-Miniature Low Profile 32.768kHz SM Watch Crystal

The CM8V03-T1A 32.768kHz surface mount crystal combines an ultra-minitaure package measuring just 2.0 x 1.2mm (2012) with ultra-low-profiile of just 0.35mm. This crystal also fetaures excellent shock and vibration performance, coupled with low power consumption as standard, making this the ideal clock crystal for specialist applications requiring low board height and tiny form-factor package.

  • 32.768kHz
  • Ultra low profile - 0.35mm
  • High shock & vibration resistance
  • Extended temperature range option
VIEW PRODUCT
CM9V-T1A
1.6 x 1.0 x 0.5mm

CM9V-T1A

SM Watch Crystal
Our smallest 32.768kHz surface mount crystal, the CM9V-T1A comes in a ultra-miniature ceramic package with metal lid and gold plated pads for increased solderability. It also features high shock and vibration resistance and low power consumption as standard.
  • 32.768kHz
  • Ultra low profile - 0.5mm
  • Miniature ceramic package with metal lid
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon
⌀2.1 x 6.2mm

GCX-26

Low Frequency Cylindrical Crystal
The GCX-26 crystal is available at frequencies between 30.0 ~ 165kHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 30.0 ~ 165kHz
  • Wide frequency range
  • Available with formed leads
  • High shock resistance options available
VIEW PRODUCT
The product image will be updated soon
⌀3.0 x 9.0mm

GCX-39

High Frequency Cylindrical Crystal
The GCX-39 is available at high frequencies from 4.0 ~ 100MHz. GCX-39 also features a miniature package measuring 3.0 x 9.0mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 4.0 ~ 100MHz
  • Wide frequency range available
  • Excellent shock resistance
  • Miniature size for high density applications
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 0.9mm

GRX-530

Automotive Crystal (AEC-Q200)
Encased within a 5.0x3.2mm industry standard package, the GRX-530 comes with AEC-Q200 as standard as part of our dedicated automotive GRX range. Available in frequencies from 9.80-40.0MHz, seam sealing of the miniature ceramic package with metal lid increases ensures the GRX-530 offers excellent long-term stability, ideal for applications such as vehicle telematics, remote keyless entry, camera and audio applications.
  • 9.8 ~ 40.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
The product image will be updated soon
⌀2.0 x 6.1mm

GSCX-26

SM Low Frequency Cylindrical Crystal
The GSCX-26, with it's miniature cylindrical package and formed leads for SM, offers the engineer a very small footprint with low cost for high density applications. Available at low frequencies from 30.0-165kHz, and with industrial operating temperature range of -40 to +85°C.
  • 30.0 ~ 165kHz
  • Low cost
  • Formed leads for SM
  • Industrial temperature range
VIEW PRODUCT
The product image will be updated soon
⌀2.0 x 6.1mm

GSWX-26

SM Cylindrical Watch Crystal
The GWCX-26, with it's miniature cylindrical package and formed leads for SM, offers the engineer a very small footprint with low cost for high density applications requiring a 32.768kHz solution. Available with operating temperature range of -40 to +85°C.
  • 32.768kHz
  • Low cost
  • Formed leads for SM
  • Industrial temperature range
VIEW PRODUCT
The product image will be updated soon
12.1 x 5.8 x 2.1mm

GSX-11

SM Crystal
The GSX-11 crystal is available at frequencies between 3.2 ~ 70.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 3.2 ~ 70.0MHz
  • Pad compatible with CP12A etc
  • Wide frequency range
VIEW PRODUCT
The product image will be updated soon
7.5 x 5.0 x 1.4mm

GSX-1A

SM Crystal
The GSX-1A two-pad fully ceramic SM package crystal, is available in a variety of oscillation modes, including fundamental up to 50.0MHz. Available in frequencies from 5.0-84.0MHz, and with a range of temperature stabilities and operating temperature ranges up to -40 to +85°C.
  • 5.0 ~ 84.0MHz
  • Fundamental mode up to 50.0MHz
  • Large stocks of standard frequencies
  • Alternative terminal configurations
VIEW PRODUCT
The product image will be updated soon
7.5 x 5.0 x 1.4mm

GSX-1B

SM Crystal
The GSX-1B crystal comes in a four-pad fully ceramic SM package with diagonal connections. Available in a variety of oscillation modes, including fundamental up to 50.0MHz, in frequencies from 5.0-84.0MHz, and with a range of temperature stabilities and operating temperature ranges up to -40 to +85°C.
  • 5.0 ~ 84.0MHz
  • Fundamental mode up to 50.0MHz
  • Large stocks of standard frequencies
  • Alternative terminal configurations
VIEW PRODUCT
The product image will be updated soon
7.5 x 5.0 x 1.4mm

GSX-1C

SM Crystal
The GSX-1C crystal comes in a two-pad fully ceramic SM package with extended pitch between pads of 5.08kmm. Available in a variety of oscillation modes, including fundamental up to 50.0MHz, in frequencies from 5.0-84.0MHz, and with a range of temperature stabilities and operating temperature ranges up to -40 to +85°C.
  • 5.0 ~ 84.0MHz
  • Fundamental mode up to 50.0MHz
  • Large stocks of standard frequencies
  • Alternative terminal configurations
VIEW PRODUCT
The product image will be updated soon
7.5 x 5.0 x 1.1mm

GSX-2

SM Crystal
The GSX-2 is available at high frequencies from 8.0 ~ 100MHz. GSX-2 also features a miniature package measuring 7.5 x 5.0 x 1.0mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 8.0 ~ 100MHz
  • Frequencies up to 100MHz
  • Tight specifications available
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
1.6 x 1.2 x 0.45mm

GSX-211

Ultra-miniature 1.6x1.2mm SM Crystal
One of our smallest crystals, the GSX-211 features an ultra-miniature 1.6x1.2mm package, perfect for space-dependant applications such as bluetooth, wearables and asset tracking. Discover more here, or if you need AEC-Q200 qualification check out our specialist GRX-210 here.
  • 24.0 ~ 54.0MHz
  • Ultra-miniature for maximum space saving
  • Ideal for space-dependent applications
  • Metal lid grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
2.0 x 1.6 x 0.55mm

GSX-221

SM Crystal
The GSX-221 ultra-miniature crystal is ideal for wireless and bluetooth applications and particulalry competitive for this size range. Offering tight stability and high reliabilty due to it's seam sealed package and tight calibration tolerance and temparture stability options, this crystal is ideal for new designs requiring an ultra-miniature crystal footprint.
  • 16.0 ~ 56.0MHz
  • Ultra-miniature for maximum space saving
  • Ideal for Bluetooth / Wireless applications
  • High reliability & tight stability
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.8 x 2.5mm

GSX-250

SM Crystal Low Frequency
The GSX-250 crystal is available at frequencies between 30.0 ~ 100kHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 30.0 ~ 100kHz
  • Plastic moulded surface mount package
  • Wide operating temperature range
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.6mm

GSX-321

SM Crystal
The ultra-miniature GSX-321 measures just 2.5 x 2.0 x 0.6mm making it ideal for size-sensitive applications. GSX-321 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 12.0 ~ 66.0MHz.
  • 12.0 ~ 66.0MHz
  • Tight specification / wide temperature option
  • Ultra-miniature for maximum space saving
  • Ideal for Bluetooth / Wireless applications
VIEW PRODUCT
GSX-331
3.2 x 2.5 x 0.8mm

GSX-331

3.2 x 2.5mm High Frequency SM Crystal with Tight Specifications

The GSX-331 is available at high frequencies from 10.0 ~ 125MHz. GSX-331 also features a miniature package measuring 3.2 x 2.5 x 0.8mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.

  • 10.0 ~ 125MHz
  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent stability
  • Tight specifications available
VIEW PRODUCT
The product image will be updated soon
4.0 x 2.5 x 0.8mm

GSX-433

SM Crystal for Bluetooth / Wireless
The GSX-433 crystal is available at frequencies between 12.0 ~ 44.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 12.0 ~ 44.0MHz
  • Good frequency perturbation
  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent long-term stability
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 0.9mm

GSX-533

SM Crystal for Bluetooth / Wireless
The GSX-533 is available at high frequencies from 8.0 ~ 160MHz. GSX-533 also features a miniature package measuring 5.0 x 3.2 x 0.9mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 8.0 ~ 160MHz
  • Good frequency perturbation
  • Metal lid can be grounded to minimise EMI
  • Seam seal for excellent long-term stability
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 0.8mm

GSX-538

SM Crystal High Frequency Fundamental
The GSX-538 is available at high frequencies from 8.0 ~ 315MHz. GSX-538 also features a miniature package measuring 5.0 x 3.2 x 0.8mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 8.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
An obsolete Golledge product

GSX-644

SM Crystal
The GSX-644 is now obsolete. For an alternative product for designs that require a pad-compatible replacement please consider the GSX-7A, or for new designs we recommend GSX-331. For more information or to speak to an expert adviser please contact our sales team here.
VIEW PRODUCT
The product image will be updated soon
6.0 x 3.5 x 1.1mm

GSX-6B

SM Crystal
The GSX-6B crystal is available at frequencies between 8.0 ~ 67.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 8.0 ~ 67.0MHz
  • Tight specifications available
  • Fundamental mode up to 40.0MHz
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
6.0 x 3.5 x 1.1mm

GSX-6C

SM Crystal
The GSX-6C crystal is available at frequencies between 8.0 ~ 67.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 8.0 ~ 67.0MHz
  • Tight specifications available
  • Fundamental mode up to 40.0MHz
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
7.5 x 5.0 x 1.1mm

GSX-758

SM Crystal High Frequency Fundamental
The GSX-758 is available at high frequencies from 50.0 ~ 315MHz. GSX-758 also features a miniature package measuring 7.5 x 5.0 x 1.1mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 50.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon
6.2 x 3.7 x 1.4mm

GSX-7A

SM Crystal
The GSX-7A crystal is available at frequencies between 12.0 ~ 67.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 12.0 ~ 67.0MHz
  • Fundamental mode available up to 40.0MHz
  • Low cost for volume applications
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.0mm

GSX-8A

SM Crystal
The GSX-8A crystal is available at frequencies between 12.0 ~ 67.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 12.0 ~ 67.0MHz
  • Fundamental mode up to 67.0MHz
  • Ceramic SM package
  • Low cost for volume applications
VIEW PRODUCT
The product image will be updated soon
11.4 x 4.7 x 3.2mm

GSX49-3

SM Crystal
The GSX49-3 crystal is available at frequencies between 3.578999 ~ 90.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 3.578999 ~ 90.0MHz
  • Industry standard HC49 footprint
  • Low profile case for close board stacking
  • Wide frequency range
VIEW PRODUCT
The Golledge GSX49-4 SM Crystal
11.4 x 4.7 x 4.3mm

GSX49-4

SM Crystal
The GSX49-4 crystal is available at frequencies between 3.18 ~ 90.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 3.18 ~ 90.0MHz
  • Industry standard HC49 footprint
  • Low profile case
  • Fundamental mode available up to 50.0MHz
VIEW PRODUCT
GWX-1610
1.6 x 1.0 x 0.5mm

GWX-1610

2012 Package 32.768kHz Watch Crystal

Available with a choice of operating temperature ranges, and temperature stabilities, the ultra-miniature GWX-1610 crystal comes in a package measuring just 1.6 x 1.0 x 0.50mm and is available at frequencies 32.768kHz. If you're looking for ultra-miniature components for your next project this could be the crystal you need.

  • 32.768kHz
  • Competitive pricing for volume applications
  • Ultra low profile - 0.6mm high
  • Light weight miniature package
VIEW PRODUCT
The product image will be updated soon
⌀1.9 X 6.0

GWX-26

2x6 Cylindrical Watch Crystal

With competitive pricing for high volume commercial projects, the GWX-26 32.768kHz watch crystal is ideal for applications expected to reach high commercial numbers. Configure your specifications here.

  • 32.768kHz
  • Low cost
  • Range of tolerances
  • Excellent ageing characteristics
VIEW PRODUCT
The product image will be updated soon
11.05 x 4.65 x 13.46mm

HC49

Standard Crystal
The HC49 is available at high frequencies from 300kHz ~ 225MHz. HC49 also features a miniature package measuring 11.05 x 4.65 x 13.46mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 300kHz ~ 225MHz
  • Industry standard HC49 case
  • Fundamental mode available up to 40.0MHz
  • Tight specifications available
VIEW PRODUCT
The product image will be updated soon
11.05 x 4.65 x 2.5mm

HC49-3H

Low Profile Crystal
The HC49-3H crystal is available at frequencies between 3.5 ~ 90.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 3.5 ~ 90.0MHz
  • Industry standard HC49 footprint
  • Fundamental mode available up to 50.0MHz
  • Low profile for close board stacking
VIEW PRODUCT
The product image will be updated soon
11.05 x 4.65 x 3.5mm

HC49-4H

Low Profile Crystal
The HC49-4H crystal is available at frequencies between 1.0 ~ 90.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 1.0 ~ 90.0MHz
  • Industry standard HC49 footprint
  • Fundamental mode available up to 50.0MHz
  • Low profile for close board stacking
VIEW PRODUCT
The product image will be updated soon
17.7 x 11.0 x 5.3mm

HC49J

SM Crystal Formed Leads
The HC49J is available at high frequencies from 1.8432 ~ 225MHz. HC49J also features a miniature package measuring 17 x 11 x 5.3mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 1.8432 ~ 225MHz
  • Fundamental mode available up to 40.0MHz
  • Low cost for volume applications
  • Express manufacturing service
VIEW PRODUCT
The product image will be updated soon
8.1 x 2.0 x 2.0mm

MS1V-T1K

SM Watch Crystal
The MS1V-T1K crystal is available at frequencies between 32.0 ~ 200kHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 32.0 ~ 200kHz
  • Unique square section case for pick & place
  • Large stock held at all times
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon
6.7 x 1.4 x 1.4mm

MS3V-T1R

SM Crystal
The MS3V-T1R crystal is available at frequencies between 30.0 ~ 200kHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.
  • 30.0 ~ 200kHz
  • Unique square section case for pick & place
  • Large stocks held at all times
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon
7.8 x 3.2 x 8.0mm

UM-1

Miniature Crystal
The UM-1 is available at high frequencies from 1.0 ~ 300MHz. UM-1 also features a miniature package measuring 7.8 x 3.2 x 8.0mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 1.0 ~ 300MHz
  • Ideal for custom frequencies & specifications
  • Wide frequency range
  • Tight specifications available
VIEW PRODUCT
The product image will be updated soon
11.6 x 7.8 x 3.5mm

UM-1J

SM Crystal Formed Leads
The UM-1J is available at high frequencies from 1.0 ~ 300MHz. UM-1J also features a miniature package measuring 11.6 x 7.8 x 3.6mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 1.0 ~ 300MHz
  • Ideal for custom frequencies & specifications
  • Wide frequency range
  • Tight specifications available
VIEW PRODUCT
The product image will be updated soon
7.8 x 3.2 x 6.0mm

UM-5

Miniature Crystal
The UM-5 is available at high frequencies from 10.0 ~ 300MHz. UM-5 also features a miniature package measuring 7.8 x 3.2 x 6.0mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 10.0 ~ 300MHz
  • Ideal for custom frequencies & specifications
  • Wide frequency range
  • Tight specifications available
VIEW PRODUCT
The product image will be updated soon
9.6 x 7.8 x 3.5mm

UM-5J

SM Crystal Formed Leads
The UM-5J is available at high frequencies from 10.0 ~ 300MHz. UM-5J also features a miniature package measuring 9.6 x 7.8 x 3.6mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 10.0 ~ 300MHz
  • Ideal for custom frequencies & specifications
  • Wide frequency range
  • Tight specifications available
VIEW PRODUCT
The Golledge GVXO-523 VCXO
L x W x Hmm

Custom Crystal

Golledge Custom Crystal

A short description of Golledge Custom Crystals

  • Custom options
  • Your spec here
  • Tell us your requirements
  • Design advice
VIEW PRODUCT
