GRX-315

Automotive Watch Crystal (AEC-Q200)

  • AEC-Q200 automotive qualified
  • Miniature ceramic package with metal lid
  • Vacuum seal for excellent long-term stability
  • Low cost for volume applications
  • Low power consumption
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The GRX-315 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Part of our automotive GRX range, the GRX-315 is our dedicated automotive 32.768kHz solution and comes fully AEC-Q200 qualified as standard. The GRX-315 offers particulalry competitive pricing for volume applications and low power consumption for minimal impact on design power budgets.

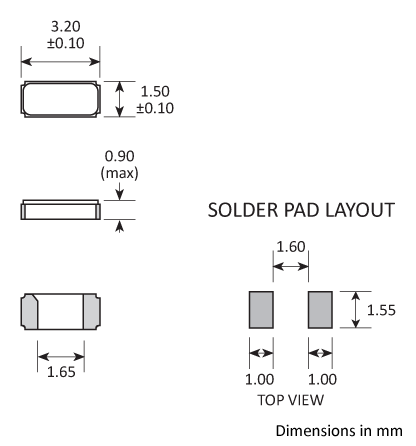

Package Drawing
Package footprint and pad configuration drawing for the Golledge GRX-315 / GRX-315 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GRX-315 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Marking
Marking
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

General Shelf Life General Shelf Life statement applies. See our statement.

Construction

Ceramic body with gold-plated pads, Metal lid, seam sealed

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
