Product Type : VCXO

GVXO-C58G
5.0 x 3.2 x 1.6mm

GVXO-C58G

1.8V VCXO with LVCMOS output and wide pulling range
The GVXO-C58G VCXO is available at high frequencies of up to 250MHz and features LVCMOS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 250MHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVCMOS Output
VIEW PRODUCT
GVXO-C58J
5.0 x 3.2 x 1.6mm

GVXO-C58J

2.5V VCXO with LVCMOS output and wide pulling range
The GVXO-C58J VCXO is available at high frequencies of up to 250MHz and features LVCMOS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 250MHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVCMOS Output
VIEW PRODUCT
GVXO-C58L
5.0 x 3.2 x 1.6mm

GVXO-C58L

3.3V VCXO with LVCMOS output and wide pulling range
The GVXO-C58L VCXO is available at high frequencies of up to 250MHz and features LVCMOS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 250MHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVCMOS Output
VIEW PRODUCT
GVXO-E33L

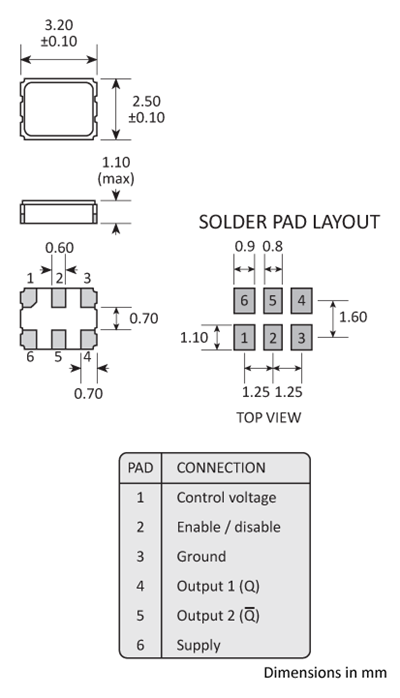

3.2 x 2.5 x 1.1mm

GVXO-E33L

3.3V Complementary LV-PECL VCXO
Designed for high speed data transfer, the GVXO-E33L features a multiplier-free design, even at extremely high frequencies of up to 250MHz, allowing for exceptionally good phase jitter performance.
  • 40.0 ~ 250MHz
  • Complementary LV-PECL outputs
  • Multiplier-free design
  • Enable / disable tristate function
VIEW PRODUCT
GVXO-E58G
5.0 x 3.2 x 1.6mm

GVXO-E58G

1.8V VCXO with LVPECL output and wide pulling range
The GVXO-E58G VCXO is available at ultra high frequencies of up to 2.1GHz and features LVPECL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVPECL Output
VIEW PRODUCT
GVXO-E58J
5.0 x 3.2 x 1.6mm

GVXO-E58J

2.5V VCXO with LVPECL output and wide pulling range
The GVXO-E58J VCXO is available at ultra high frequencies of up to 2.1GHz and features LVPECL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVPECL Output
VIEW PRODUCT
GVXO-E58L
5.0 x 3.2 x 1.6mm

GVXO-E58L

3.3V VCXO with LVPECL output and wide pulling range
The GVXO-E58L VCXO is available at ultra high frequencies of up to 2.1GHz and features LVPECL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVPECL Output
VIEW PRODUCT
GVXO-H58G
5.0 x 3.2 x 1.6mm

GVXO-H58G

1.8V VCXO with HCSL output and wide pulling range
The GVXO-H58G VCXO is available at high frequencies of up to 700MHz and features HCSL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 700MHZ
  • Wide Pullability
  • Ultra Low Noise
  • HCSL Output
VIEW PRODUCT
GVXO-H58J
5.0 x 3.2 x 1.6mm

GVXO-H58J

2.5V VCXO with HCSL output and wide pulling range
The GVXO-H58J VCXO is available at high frequencies of up to 700MHz and features HCSL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 700MHZ
  • Wide Pullability
  • Ultra Low Noise
  • HCSL Output
VIEW PRODUCT
GVXO-H58L
5.0 x 3.2 x 1.6mm

GVXO-H58L

3.3V VCXO with HCSL output and wide pulling range
The GVXO-H58L VCXO is available at high frequencies of up to 700MHz and features HCSL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 700MHZ
  • Wide Pullability
  • Ultra Low Noise
  • HCSL Output
VIEW PRODUCT
GVXO-L33L
3.2 x 2.5 x 1.1mm

GVXO-L33L

3.3V Complementary LVDS VCXO
The GVXO-L33L features exceptionally low phase jitter performance with complementary LVDS outputs, ideal of high speed data applications. Combined with a miniature surface mount package, and in-built enable/diasble tristate functionality, this VCXO is ideal for high speed networking and data transfer projects.
  • 40.0 ~ 250MHz
  • Complementary LVDS outputs
  • Multiplier-free design
  • Enable / disable tristate function
VIEW PRODUCT
GVXO-L58G
5.0 x 3.2 x 1.6mm

GVXO-L58G

1.8V VCXO with LVDS output and wide pulling range
The GVXO-L58G VCXO is available at ultra high frequencies of up to 2.1GHz and features LVDS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVDS Output
VIEW PRODUCT
GVXO-L58J
5.0 x 3.2 x 1.6mm

GVXO-L58J

2.5V VCXO with LVDS output and wide pulling range
The GVXO-L58J VCXO is available at ultra high frequencies of up to 2.1GHz and features LVDS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVDS Output
VIEW PRODUCT
GVXO-L58L
5.0 x 3.2 x 1.6mm

GVXO-L58L

3.3V VCXO with LVDS output and wide pulling range
The GVXO-L58L VCXO is available at ultra high frequencies of up to 2.1GHz and features LVDS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVDS Output
VIEW PRODUCT
GVXO-M58G
5.0 x 3.2 x 1.6mm

GVXO-M58G

1.8V VCXO with CML output and wide pulling range
The GVXO-M58G VCXO is available at ultra high frequencies of up to 2.1GHz and features CML output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • CML Output
VIEW PRODUCT
GVXO-M58J
5.0 x 3.2 x 1.6mm

GVXO-M58J

2.5V VCXO with CML output and wide pulling range
The GVXO-M58J VCXO is available at ultra high frequencies of up to 2.1GHz and features CML output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • CML Output
VIEW PRODUCT
GVXO-M58L
5.0 x 3.2 x 1.6mm

GVXO-M58L

3.3V VCXO with CML output and wide pulling range
The GVXO-M58L VCXO is available at ultra high frequencies of up to 2.1GHz and features CML output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • CML Output
VIEW PRODUCT

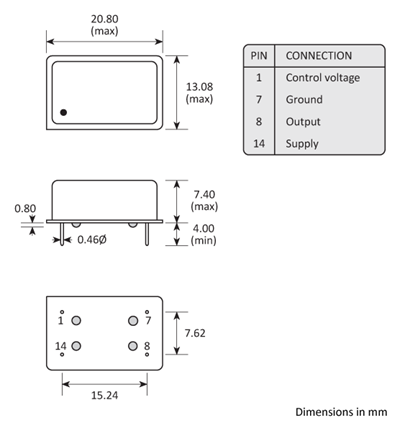

DIL-14 7.4mm height package
DIL-14

GVXO-25

5V VCXO High Performance
The GVXO-25 is no longer recommended for new designs, instead please consider the GVXO-41F for a more cost-effective solution for standard applications. The GVXO-25 does provide low phase noise characteristics, in addition to frequency pullability of ±200ppm. The GVXO-25 comes in a 14 pin DIL (full size) package, and has CMOS/TTL compatible output.
  • 1.0 ~ 52.0MHz
  • Wide pullability
  • Encapsulated crystal for high reliability
  • Fundamental mode for improved phase noise
VIEW PRODUCT
GVXO-27L

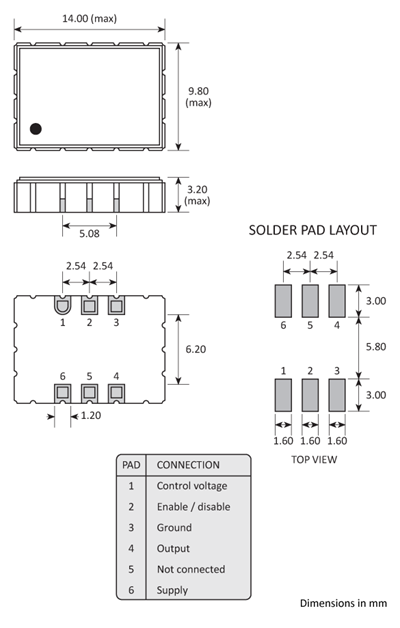

14.0 x 9.8 x 3.2mm

GVXO-27L

3.3V & 5V VCXO - High Freq Fundamental

Available over a wide range of frequencies, from 1.0MHz to 75.0MHz, the GVXO-27L voltage controlled oscillator offers superb low jitter performance and fast rise/fall time of 5ns maximum. This component also has a wide range of frequency pullability options, and is available with industrial operating temperature range.

  • 1.0 ~ 75.0MHz
  • Fundamental crystal up to 75MHz
  • HCMOS compatible output
  • Low jitter and fast rise / fall
VIEW PRODUCT
GVXO-27S
14.0 x 9.8 x 3.2mm

GVXO-27S

3.3V & 5V VCXO - High Freq Fundamental
The GVXO-27S voltage controlled oscillator provides a CMOS compatible output with excellent low jitter characteristics in a surface mount package. Available over a wide range of frequencies, from 1.0 ~ 75.0MHz, the GVXO-27S also features fast enable/disable time of 100ms maximum.
  • 1.0 ~ 75.0MHz
  • Fundamental crystal up to 75MHz
  • HCMOS compatible output
  • Low jitter and fast rise / fall
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-32L

3.3V & 5V VCXO - High Frequency
The GVXO-32L voltage controlled oscillator with 3.3V supply voltage and CMOS compatible output, comes encased within a popular telecoms surface mount package. Available at high frequencies from 52.0-160MHz, this component also features wide frequency pullability, driving ability of 15pF CMOS, and custom frequency stability options are available.
  • 52.0 ~ 160MHz
  • CMOS compatible output
  • Low jitter and fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-32S

3.3V & 5V VCXO - High Frequency
Available over a wide range of high frequencies, from 52.0 ~ 160MHz, the GVXO-32S offers the engineer superbly low jitter performance, whilst maintaining a fast start up time of only 10ms maximum. A range of frequency stability and frequency pullability options are available making this voltage controlled oscillator suitable for a range of applications.
  • 52.0 ~ 160MHz
  • CMOS compatible output
  • Low jitter and fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-34L

3.3V & 5V VCXO - Complementary PECL
The GVXO-34L, with 3.3V supply voltage, offers wide frequency pullability of up to ±100ppm at very high frequencies of up to 800MHz. With complementary LV-PECL output, the GVXO-34L comes in a popular telecoms-style package, making it suitable for a wide range of industries and applications.
  • 50.0 ~ 170MHz
  • Complementary LV-PECL or PECL outputs
  • Fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-34S

3.3V & 5V VCXO - Complementary PECL
With a wide available frequency range from 50.0 - 170MHz, the GVXO-34S provides a wide frequency pullability of ±100ppm minimum. The popular telecoms package of this component ensures its suitability for a range of applications where complementary PECL output is required.
  • 50.0 ~ 170MHz
  • Complementary LV-PECL or PECL outputs
  • Fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
GVXO-36

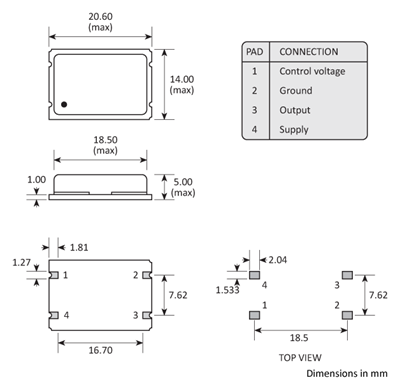

20.6 x 14.0 x 5.0mm

GVXO-36

5V VCXO - High Frequency
With integral fundamental mode crystal, and available up to 80.0MHz, the GVXO-36 provides a low jitter output even at high frequencies. Encased within a sturdy surface mount package, this component features 15pF CMOS driving ability and high frequency CMOS output.
  • 12.0 ~ 80.0MHz
  • Fundamental mode crystal up to 50MHz
  • High frequency CMOS compatible output
  • Fast rise / fall times
VIEW PRODUCT

What are VCXOs?

VCXO stands for “Voltage Controlled Crystal Oscillators”.

These oscillators are used in electronics to generate a periodic signal with high stability and accuracy that is also tunable. This stability and accuracy of the oscillator allow it to provide a stable clock signal for digital integrated circuits so that they can be used for timekeeping in various technological applications, such as telecommunications, data transmission, and frequency synthesis.

The frequency of the oscillator is varied using a variable capacitance (varicap) diode used in reverse bias. This tunes the resonance of the crystal circuit slightly away from the resonance of the crystal.

VCXOs from Golledge

We offer a full range of VCXO products to help you create the product or appliance that you need. Visit our website here and use our product search to find the exact voltage-controlled oscillator you need.

All of our VCXO products are chosen for their combination of highly competitive commercial pricing, reliable build and large range of developed frequencies and specifications.
