OCXOs

Product Selector

Select your specific requirements to find the products you need.

CLEAR ALL Products: 45
Frequency
Product Type
Package
Package Height mm (<=)
Stability ppm (<=)
Operating Temperature Range °C
Output Type
Supply Voltage V
Pullability ppm (>=)
loading...

Product Type : OCXO

The product image will be updated soon

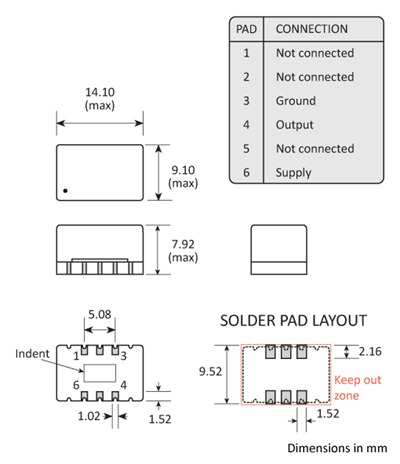

14.10 x 9.10 x 6.85mm

GOXO-149

SM OCXO
The GOXO-149 OCXO with CMOS output features 14.0 x 9.0 x 6.85mm package and is available with supply voltage 3.3V at frequencies from 10.0 ~ 80.0MHz.
  • 10.0 ~ 80.0MHz
  • Miniature SM package - 50% smaller footprint than DIL-14
  • Ideally suited for base stations, VSAT etc
  • Outstanding phase noise characteristics
VIEW PRODUCT
The product image will be updated soon
46.0 x 36.2 x 15.5mm

HCD181

OCXO HCMOS Output Low Frequency
The HCD181 OCXO with CMOS output features 46 x 36 x 15mm package and is available with supply voltage 12.0V at frequencies from 30.0kHz ~ 5.0MHz.
  • 30.0kHz ~ 5.0MHz
  • HCMOS / TTL compatible output
  • Low profile package
  • Separate oven & oscillator supplies
VIEW PRODUCT
The product image will be updated soon
46.0 x 36.2 x 15.5mm

HCD191

OCXO HCMOS Output Low Frequency
The HCD191 OCXO with CMOS output features 46 x 36 x 15mm package and is available with supply voltage 12.0V at frequencies from 30.0kHz ~ 5.0MHz.
  • 30.0kHz ~ 5.0MHz
  • HCMOS / TTL compatible output
  • Low profile package
  • Single supply version of HCD181
VIEW PRODUCT
The product image will be updated soon

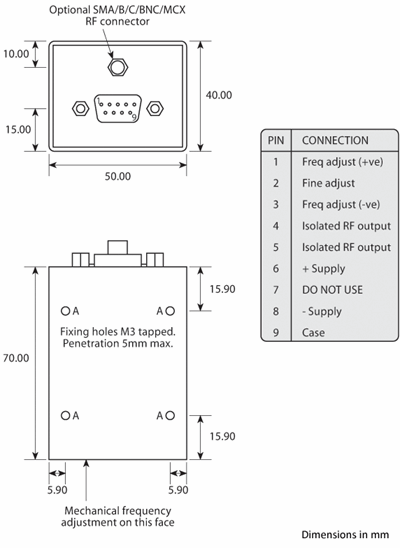

70 x 50 x 40mm

HCD210

OCXO Sine Output
The HCD210 OCXO with SINE output features 70.0 x 50.0 x 40.0mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 100MHz.
  • 5.0 ~ 100MHz
  • Frequencies up to 100MHz
  • Internal multiplier above 50.0MHz
  • Single oven & oscillator supply
VIEW PRODUCT
The product image will be updated soon

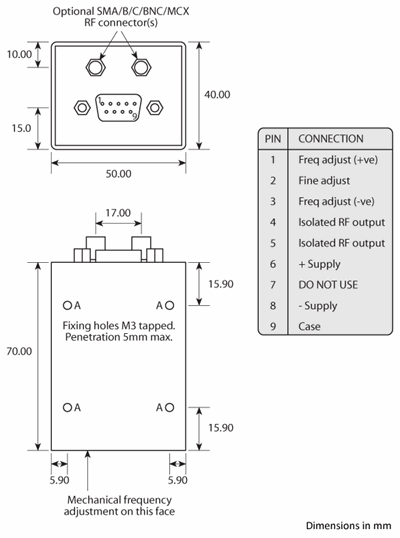

70 x 50 x 40mm

HCD220

OCXO Sine Output
The HCD220 chassis mounted oven controlled oscillator, available from 5.0~16MHz, features dual RF outputs and mechanical frequency trimming with fine frequency adjustment. Available with a range of excellent temperature stability options including as good as ±1ppb, and also in a range of supply voltages from 12~30V.
  • 5.0 ~ 16.0MHz
  • ±1ppb Temperature stability
  • Dual RF output available
  • Oven alarm option
VIEW PRODUCT

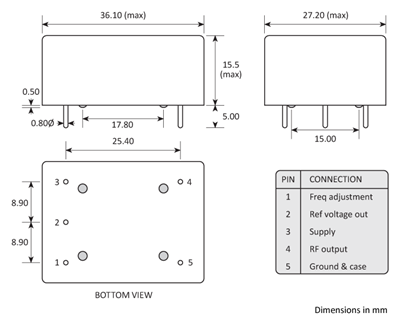

Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.0mm

HCD300

5V OCXO Sine Output Low profile
The HCD300 OCXO with SINE output features 36 x 27 x 15mm package and is available with supply voltage 5.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 50ppb
  • Single 5V oven & oscillator supply
  • Low profile compact package
VIEW PRODUCT
Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.0mm

HCD301

5V OCXO CMOS Output Low profile
The HCD301 OCXO with CMOS output features 36 x 27 x 15mm package and is available with supply voltage 5.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 50ppb
  • Single 5V oven & oscillator supply
  • Low profile compact package
VIEW PRODUCT
Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.0mm

HCD310

OCXO Sine Output Low profile
The HCD310 OCXO with SINE output features 36 x 27 x 15mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 60.0MHz.
  • 5.0 ~ 60.0MHz
  • Temperature stability down to 50ppb
  • Single 12V supply (15V or 18V optional)
  • Low profile compact package
VIEW PRODUCT
Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.0mm

HCD311

OCXO CMOS Output Low profile
The HCD311 OCXO with CMOS output features 36 x 27 x 15mm package and is available with supply voltage 9.012.015.018.0V at frequencies from 5.0 ~ 50.0MHz.
  • 5.0 ~ 50.0MHz
  • Temperature stability down to 50ppb
  • Low profile compact package
  • Single oven & oscillator supply
VIEW PRODUCT
Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.0mm

HCD331

5V OCXO CMOS Output
The HCD331 OCXO with CMOS output features 36 x 27 x 15mm package and is available with supply voltage 5.0V at frequencies from 13.0 ~ 20.0MHz.
  • 13.0 ~ 20.0MHz
  • Temperature stability down to 20ppb
  • Single 5V oven & oscillator supply
  • Low height compact package
VIEW PRODUCT
The product image will be updated soon
36.1 x 27.2 x 19.4mm

HCD350

5V OCXO Sine Output
The HCD350 OCXO with CMOS output features 36 x 27 x 20mm package and is available with supply voltage 5.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 5ppb
  • Single 5V oven & oscillator supply
  • Compact package
VIEW PRODUCT
The product image will be updated soon
36.1 x 27.2 x 19.4mm

HCD351

5V OCXO CMOS Output
The HCD351 OCXO with CMOS output features 36 x 27 x 20mm package and is available with supply voltage 5.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 5ppb
  • Single 5V oven & oscillator supply
  • Compact package
VIEW PRODUCT
The product image will be updated soon
36.1 x 27.2 x 19.4mm

HCD360

OCXO Sine Output
The HCD360 OCXO with SINE output features 36 x 27 x 20mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 5ppb
  • Single 12V supply (15V or 18V optional)
  • Compact package
VIEW PRODUCT
The product image will be updated soon
36.1 x 27.2 x 19.4mm

HCD361

OCXO CMOS Output
The HCD361 OCXO with CMOS output features 36 x 27 x 20mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 5ppb
  • Single 12V supply (15V or 18V optional)
  • Compact package
VIEW PRODUCT
The product image will be updated soon
36.1 x 27.2 x 15.5mm

HCD370

OCXO Sine Output Low Height
The HCD370 OCXO with SINE output features 36 x 27 x 15mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Low height compact package
  • Temperature stability down to 5ppb
  • Single 12V supply (15V or 18V optional)
VIEW PRODUCT
The product image will be updated soon
36.1 x 27.2 x 15.5mm

HCD371

OCXO CMOS Output Low Height
The HCD371 OCXO with CMOS output features 36 x 27 x 15mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Low height compact package
  • Temperature stability down to 5ppb
  • Single 12V supply (15V or 18V optional)
VIEW PRODUCT
Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.5mm

HCD380

OCXO Sine Output VHF
The HCD380 OCXO with SINE output features 36 x 27 x 15mm package and is available with supply voltage 12.015.018.0V at frequencies from 30.0 ~ 100MHz.
  • 30.0 ~ 100MHz
  • -160dBc/Hz noise floor
  • Frequencies up to 100MHz
  • No multiplier
VIEW PRODUCT
Golledge 36.0 x 27.0 x 15.0mm OCXO
36.1 x 27.2 x 15.5mm

HCD381

OCXO CMOS Output VHF
The HCD381 OCXO with CMOS output features 36 x 27 x 15mm package and is available with supply voltage 12.015.018.0V at frequencies from 30.0 ~ 100MHz.
  • 30.0 ~ 100MHz
  • -160dBc/Hz noise floor
  • Frequencies up to 100MHz
  • No multiplier
VIEW PRODUCT
The product image will be updated soon
51.0 x 41.0 x 24.5mm

HCD660

OCXO Sine Output High Performance
The HCD660 OCXO with SINE output features 51 x 41 x 25mm package and is available with supply voltage 122430V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
  • Standard European pin-out
VIEW PRODUCT
The product image will be updated soon
51.0 x 41.0 x 24.5mm

HCD661

OCXO CMOS Output High Performance
The HCD661 OCXO with CMOS output features 51 x 41 x 25mm package and is available with supply voltage 12.015.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
  • Standard European pin-out
VIEW PRODUCT
The product image will be updated soon
51.0 x 41.0 x 24.5mm

HCD665

OCXO Sine Output Fast Warm Up
The HCD665 OCXO with SINE output features 51 x 41 x 25mm package and is available with supply voltage 12.015.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Fast warm up
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
VIEW PRODUCT
The product image will be updated soon
51.0 x 41.0 x 24.5mm

HCD666

OCXO CMOS Output Fast Warm Up
The HCD666 OCXO with CMOS output features 51 x 41 x 25mm package and is available with supply voltage 12.015.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Fast warm up
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
VIEW PRODUCT
The product image will be updated soon

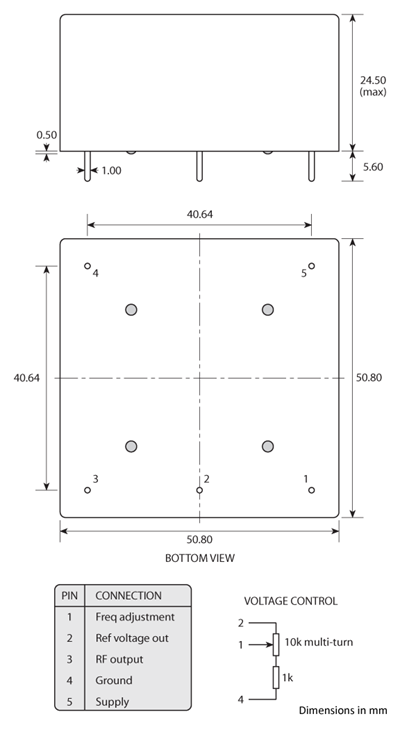

50.8 x 50.8 x 24.5mm

HCD680

OCXO Sine Output High Performance
The HCD680 OCXO with SINE output features 51 x 51 x 25mm package and is available with supply voltage 12.015.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
  • Standard US footprint & pin-out
VIEW PRODUCT
The product image will be updated soon
50.8 x 50.8 x 24.5mm

HCD681

OCXO CMOS Output High Performance
The HCD681 OCXO with CMOS output features 51 x 51 x 25mm package and is available with supply voltage 12.015.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
  • Standard US footprint & pin-out
VIEW PRODUCT
The product image will be updated soon
50.8 x 50.8 x 24.5mm

HCD685

OCXO Sine Output Fast Warm Up
The HCD685 OCXO with SINE output features 51 x 51 x 25mm package and is available with supply voltage 12.015.0V at frequencies from 5.0 ~ 20.0MHz.
  • 5.0 ~ 20.0MHz
  • Fast warm up
  • Temperature stability down to 1ppb
  • Single 12V supply (12V ~ 30V optional)
VIEW PRODUCT
