GSX-433 SM Crystal for Bluetooth / Wireless

Good frequency perturbation
Metal lid can be grounded to minimise EMI
Seam sealed for excellent long-term stability
Ultra-miniature for maximum space saving
Ideal for Bluetooth / Wireless applications

DOWNLOAD PDF

Configurable Options
ParameterOption Code

Quantity / Special Request

Please specify the quantity you require below.

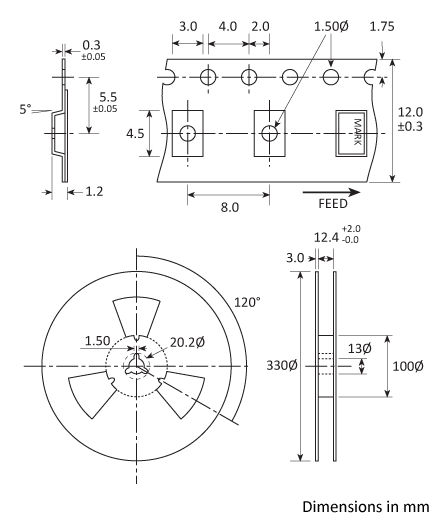

The GSX-433 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

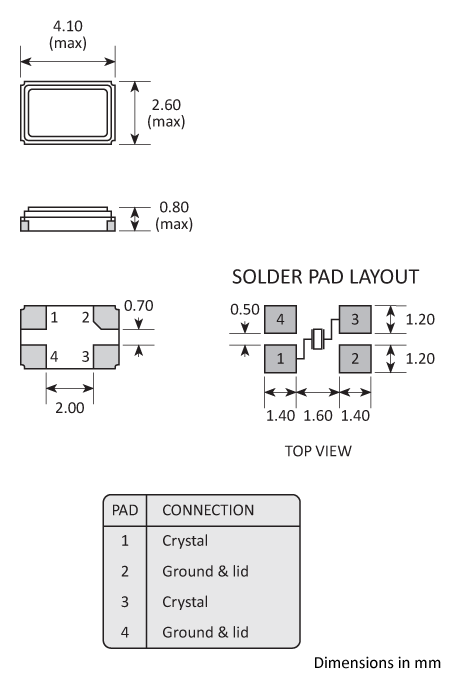

Package Drawing

Package footprint and pad configuration drawing for the Golledge GSX-433 Crystal showing full dimensions.

Ordering Information

To request a quotation for the GSX-433 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
