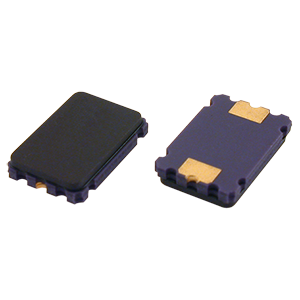

GSX-1A SM Crystal

  • Fundamental mode up to 50.0MHz
  • Large stocks of standard frequencies
  • Alternative terminal configurations
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The GSX-1A is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.
Product Description
The GSX-1A two-pad fully ceramic SM package crystal, is available in a variety of oscillation modes, including fundamental up to 50.0MHz. Available in frequencies from 5.0-84.0MHz, and with a range of temperature stabilities and operating temperature ranges up to -40 to +85°C.
Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-1A Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications
A:250 B:16 C:7.9 D:5.4 E:8 F:2.2 G:80 H:25
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction
Ceramic base and lid
Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.

Nominal Net Mass Nominal Net Mass: 130mg
