CC1A-T1AH

SM Crystal -55+200°C

  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
  • High shock & vibration resistance
  • Ultra low MSL
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The CC1A-T1AH is available supplied either on tape and reel or packaged within trays. T&R standard pack size is 1k or 2k pcs and standard tray size is 100pcs per tray. Partial quantities may be supplied on tape (no reel), partial trays, or in bulk.

Product Description

Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the CC1A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.

Package Drawing

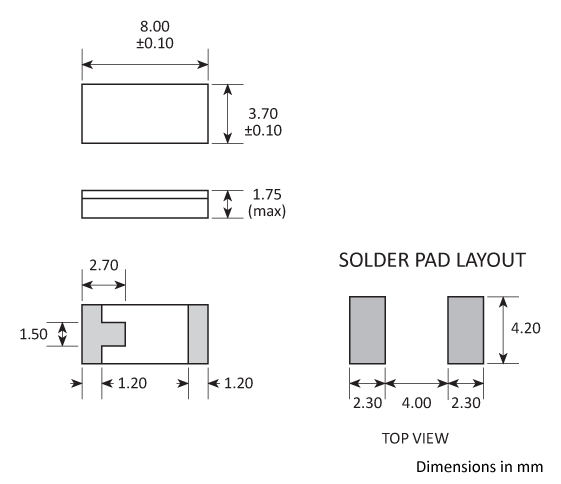

Package footprint and pad configuration drawing for the Golledge CC1A Crystal showing full dimensions.
Ordering Information

To request a quotation for the CC1A-T1AH please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Order now from Digikey

Order now from Digikey

Order now from Digikey

Link to buy from Digikey



Tape & Reel Specification
Tape and Reel specifications

A:178* B:16 C:8.5 D:4.4 E:8 F:2 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction

Ceramic base and lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
