Crystals

A H4 header

Crystals uCom description

Product Selector

Select your specific requirements to find the products you need.

CLEAR ALL Products: 78
Frequency
Product Type
Package
Package Height mm (<=)
Stability ppm (<=)
Calibration Tolerance ppm (<=)
Operating Temperature Range °C
Automotive Qualification
loading...

Product Type : Crystal

GWX-2012
2.05 x 1.2 x 0.6mm

GWX-2012

2012 Package 32.768kHz Watch Crystal

The ultra-miniature GWX-2012 measures just 2.0 x 1.2 x 0.60mm making it ideal for size-sensitive applications. GWX-2012 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 32.768kHz.

  • 32.768kHz
  • Competitive pricing for volume applications
  • Ultra low profile - 0.6mm high
  • Light weight miniature package
VIEW PRODUCT
The product image will be updated soon
3.5 x 2.2 x 0.9mm

CC6A-T1AH

SM Crystal -55+200°C
Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the miniature CC6A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 16.0-40.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 16.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
1.6 x 1.2 x 0.45mm

GRX-210

Automotive Crystal (AEC-Q200)
The smallest member of our dedicated automotive GRX range, the GRX-210 automotive crystal is available in frequencies from 26.0-40MHz and comes fully AEC-Q200 qualified as standard. The miniature ceramic package with seam sealed metal lid makes the GRX-210 particulalry ideal for tight-space applications that require excellent long-term stability.
  • 26.0 ~ 40.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
The product image will be updated soon
2.0 x 1.6 x 0.55mm

GRX-220

Automotive Crystal (AEC-Q200)
Part of our dedicated automotive GRX range, the GRX-220 automotive crystal is available in frequencies from 16.0-26MHz and comes fully AEC-Q200 qualified as standard. The miniature ceramic package with seam sealed metal lid makes the GRX-220 particulalry ideal for tight-space applications that require excellent long-term stability including vehicle telematics, connected car and in-car audio.
  • 16.0 ~ 26.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.6mm

GRX-320

Automotive Crystal (AEC-Q200)
Part of our dedicated automotive GRX range, the GRX-320 automotive crystal is available in frequencies from 12.0-40.0MHz and comes fully AEC-Q200 qualified as standard. The miniature ceramic package with seam sealed metal lid makes the GRX-320 particulalry ideal for tight-space applications that require excellent long-term stability including vehicle telematics, connected car and in-car audio.
  • 12.0 ~ 40.0MHz
  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
VIEW PRODUCT
GRX-330
3.2 x 2.5 x 0.8mm

GRX-330

Automotive Crystal (AEC-Q200)
The GRX-330 automotive crystal continues to be the most popular component within our dedicated GRX automotive crystal range. Available in frequencies from 12.0-40.0MHz and fully AEC-Q200 qualified as standard, the industry-standard miniature ceramic package with seam sealed metal lid makes the GRX-330 particularly ideal for numerous automotive applications including vehicle telematics, connected car and in-car audio.
  • 12.0 ~ 40.0MHz
  • AEC-Q200 Qualified
  • Miniature 3.2x2.5mm package
  • Custom stabilities available
VIEW PRODUCT
GSX-113

GSX-113
VIEW PRODUCT
The product image will be updated soon
1.65 x 1.25 x 0.35mm

GSX-213

SM Crystal for NFC, Smartcard etc
The smallest crystal in our key product range, the ultra-minature ceramic package of the GSX-211 makes it ideal for space-dependant applications such as wearables, smartcard, NFC and bluetooth.
  • 26.0 ~ 60.0MHz
  • Ultra-miniature for maximum space saving
  • Ideal for near field communications (NFC), smartcard, wireless & mobile
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
2.05 x 1.65 x 0.6mm

GSX-223

SM Crystal
The GSX-223 ultra-miniature crystal is ideal for wireless and bluetooth applications. With a seam sealed package providing excellent longevity and tight calibration tolerance and temparture stability options, this crystal is ideal for new designs requiring an ultra-miniature crystal footprint.
  • 16.0 ~ 50.0MHz
  • Ultra-miniature for maximum space saving
  • Ideal for wireless & mobile applications
  • Metal lid can be grounded to minimise EMI
VIEW PRODUCT
The product image will be updated soon
2.0 x 1.6 x 0.5mm

GSX-228

SM Crystal High Frequency Fundamental
Achieve fundamental mode frequencies of up to 315MHz in an ultra-miniature package with our GSX-228. Available in custom frequncies on short lead times, this crystal also features a ceramic body with gold plated pads for excellent longevity, and is available in a range of temperature stabilities, circuit conditions and operature temperature ranges, all customisable to your needs.
  • 20.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.6mm

GSX-323

SM Crystal for Bluetooth
The ultra-miniature GSX-323 measures just 2.5 x 2.0 x 0.6mm making it ideal for size-sensitive applications. GSX-323 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 12.0 ~ 54.0MHz.
  • 12.0 ~ 54.0MHz
  • Ideal for Bluetooth / Wireless applications
  • Seam sealed for excellent stability
  • Ultra-miniature for maximum space saving
VIEW PRODUCT
The product image will be updated soon
2.5 x 2.0 x 0.7mm

GSX-328

SM Crystal High Frequency Fundamental
The ultra-miniature GSX-328 measures just 2.5 x 2.0 x 0.7mm making it ideal for size-sensitive applications. GSX-328 also features a choice of operating temperature ranges and temperature stabilities, and is available in a choice of circuit conditions at frequencies 16.0 ~ 315MHz.
  • 16.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon
3.2 x 2.5 x 0.7mm

GSX-333

SM Crystal for Bluetooth / Wireless
The GSX-333 is available at high frequencies from 12.0 ~ 125MHz. GSX-333 also features a miniature package measuring 3.2 x 2.5 x 0.7mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 12.0 ~ 125MHz
  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent long-term stability
  • Ultra-miniature for maximum space saving
VIEW PRODUCT
The product image will be updated soon
3.2 x 2.5 x 0.8mm

GSX-338

SM Crystal High Frequency Fundamental
The GSX-338 is available at high frequencies from 10.0 ~ 315MHz. GSX-338 also features a miniature package measuring 3.2 x 2.5 x 0.8mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities. Find more information and configure your product here.
  • 10.0 ~ 315MHz
  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
VIEW PRODUCT
The product image will be updated soon

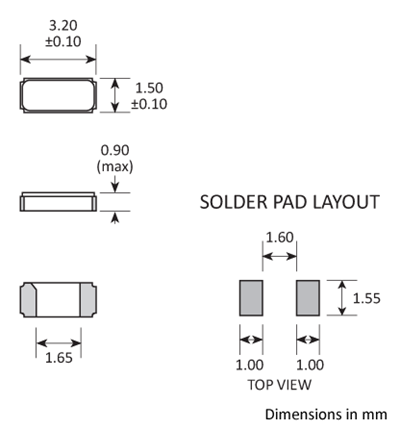

3.2 x 1.5 x 0.9mm

GRX-315

Automotive Watch Crystal (AEC-Q200)

Part of our automotive GRX range, the GRX-315 is our dedicated automotive 32.768kHz solution and comes fully AEC-Q200 qualified as standard. The GRX-315 offers particulalry competitive pricing for volume applications and low power consumption for minimal impact on design power budgets.

  • 32.768kHz
  • AEC-Q200 automotive qualified
  • Miniature ceramic package with metal lid
  • Vacuum seal for excellent long-term stability
VIEW PRODUCT
The product image will be updated soon
3.2 x 1.5 x 0.9mm

GSX-315

SM 32.768kHz Watch Crystal
Our most popular 32.768kHz solution, the GSX-315 offers highly competitive pricing and low power consumption (just 0.1uW typical) in a miniature vacuum sealed ceramic package.
  • 32.768kHz
  • Miniature ceramic package with metal lid
  • Vacuum seal for excellent long-term stability
  • Low cost for volume applications
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T1A

SM Crystal -55+125°C

The gold plated pads of the CC1A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 8.0-30.0MHz and in military standard operating temperature range of -55 to 125°C.

  • 8.0 ~ 30.0MHz
  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T1AH

SM Crystal -55+200°C

Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the CC1A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.

  • 8.0 ~ 24.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T3A

SM Crystal -55+125°C with Sn/Ag/Cu plated pads
The gold plated pads of the CC1A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 8.0-30.0MHz and in military standard operating temperature range of -55 to 125°C.
  • 8.0 ~ 30.0MHz
  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1A-T3AH

SM Crystal -55+175°C with Sn/Ag/Cu plated pads
Available with extreme operating temperature ranges including -55 to 200°C, the CC1A-T3AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 8.0 ~ 24.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 175°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1F-T1A

SM Crystal -55+125°C High Frequency
With gold plated pads for excellent longevity and solderability, the inverted mesa technology within the CC1F-T1A allows this fundamental mode crystal to offer excellent shock and vibration resistance at frequencies up to 250MHz. With military operating temperature range of -55 to 125°C available the CC1F-T1A is an ideal crystal for high frequency military, avionics and down hole applications.
  • 30.0 ~ 250MHz
  • Fundamental up to 250MHz
  • Inverted mesa technology
  • High shock & vibration resistance
VIEW PRODUCT
The product image will be updated soon
8.0 x 3.7 x 1.8mm

CC1V-T1A

SM Crystal -55+125°C Low Frequency
The gold plated pads of the CC1V-T1A offer excellent longetivity and solderability for applications requiring low frequencies. The CC1V-T1A crystal features excellent shock and vibration resistance and is available in frequencies from 10.0kHz-2.1MHz and is also available in military standard operating temperature range of -55 to 125°C.
  • 10.0kHz ~ 2.1MHz
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
  • Low frequency range
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T1A

SM Crystal -55+125°C
The gold plated pads of the CC2A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 10.0-70.0MHz and is also available with military standard operating temperature range of -55 to 125°C.
  • 10.0 ~ 70.0MHz
  • Suitable for Avionics, Sat Comms etc
  • Military temperature range -55+125°C option
  • High stability & low ageing
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T1AH

SM Crystal -55+200°C
Available with extreme operating temperature ranges including -55 to 200°C, and featuring gold plated pads for extra longevity, the CC2A-T1AH is ideal for harsh environment applications including down hole, avionics, and geothermal industries. This surface mount crystal is available from 8.0-24.0MHz and has extremely good shock resistance of 10,000G and vibration resistance of 40G rms 10.0 ~ 2,000Hz.
  • 10.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
VIEW PRODUCT
The product image will be updated soon
5.0 x 3.2 x 1.2mm

CC2A-T3A

SM Crystal -55+125°C with Sn/Ag/Cu plated pads
The gold plated pads of the CC2A-T1A offer excellent longetivity and solderability for specialist applications. This fundamental mode crystal features excellent shock and vibration resistance and is available in frequencies from 10.0-70.0MHz and is also available with military standard operating temperature range of -55 to 125°C.
  • 10.0 ~ 70.0MHz
  • Suitable for Avionics, Sat Comms etc
  • Military temperature range -55+125°C option
  • High stability & low ageing
VIEW PRODUCT
