VCXOs

A VCXO Description for the header

Product Selector

Select your specific requirements to find the products you need.

CLEAR ALL Products: 46
Frequency
Product Type
Package
Package Height mm (<=)
Stability ppm (<=)
Operating Temperature Range °C
Output Type
Supply Voltage V
Pullability ppm (>=)
loading...

Product Type : VCXO

GVXO-C58G
5.0 x 3.2 x 1.6mm

GVXO-C58G

1.8V VCXO with LVCMOS output and wide pulling range
The GVXO-C58G VCXO is available at high frequencies of up to 250MHz and features LVCMOS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 250MHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVCMOS Output
VIEW PRODUCT
GVXO-C58J
5.0 x 3.2 x 1.6mm

GVXO-C58J

2.5V VCXO with LVCMOS output and wide pulling range
The GVXO-C58J VCXO is available at high frequencies of up to 250MHz and features LVCMOS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 250MHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVCMOS Output
VIEW PRODUCT
GVXO-C58L
5.0 x 3.2 x 1.6mm

GVXO-C58L

3.3V VCXO with LVCMOS output and wide pulling range
The GVXO-C58L VCXO is available at high frequencies of up to 250MHz and features LVCMOS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 250MHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVCMOS Output
VIEW PRODUCT
GVXO-E33L
3.2 x 2.5 x 1.1mm

GVXO-E33L

3.3V Complementary LV-PECL VCXO
Designed for high speed data transfer, the GVXO-E33L features a multiplier-free design, even at extremely high frequencies of up to 250MHz, allowing for exceptionally good phase jitter performance.
  • 40.0 ~ 250MHz
  • Complementary LV-PECL outputs
  • Multiplier-free design
  • Enable / disable tristate function
VIEW PRODUCT
GVXO-E58G
5.0 x 3.2 x 1.6mm

GVXO-E58G

1.8V VCXO with LVPECL output and wide pulling range
The GVXO-E58G VCXO is available at ultra high frequencies of up to 2.1GHz and features LVPECL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVPECL Output
VIEW PRODUCT
GVXO-E58J
5.0 x 3.2 x 1.6mm

GVXO-E58J

2.5V VCXO with LVPECL output and wide pulling range
The GVXO-E58J VCXO is available at ultra high frequencies of up to 2.1GHz and features LVPECL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVPECL Output
VIEW PRODUCT
GVXO-E58L
5.0 x 3.2 x 1.6mm

GVXO-E58L

3.3V VCXO with LVPECL output and wide pulling range
The GVXO-E58L VCXO is available at ultra high frequencies of up to 2.1GHz and features LVPECL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVPECL Output
VIEW PRODUCT
GVXO-H58G
5.0 x 3.2 x 1.6mm

GVXO-H58G

1.8V VCXO with HCSL output and wide pulling range
The GVXO-H58G VCXO is available at high frequencies of up to 700MHz and features HCSL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 700MHZ
  • Wide Pullability
  • Ultra Low Noise
  • HCSL Output
VIEW PRODUCT
GVXO-H58J
5.0 x 3.2 x 1.6mm

GVXO-H58J

2.5V VCXO with HCSL output and wide pulling range
The GVXO-H58J VCXO is available at high frequencies of up to 700MHz and features HCSL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 700MHZ
  • Wide Pullability
  • Ultra Low Noise
  • HCSL Output
VIEW PRODUCT
GVXO-H58L
5.0 x 3.2 x 1.6mm

GVXO-H58L

3.3V VCXO with HCSL output and wide pulling range
The GVXO-H58L VCXO is available at high frequencies of up to 700MHz and features HCSL output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 700MHZ
  • Wide Pullability
  • Ultra Low Noise
  • HCSL Output
VIEW PRODUCT
GVXO-L33L
3.2 x 2.5 x 1.1mm

GVXO-L33L

3.3V Complementary LVDS VCXO
The GVXO-L33L features exceptionally low phase jitter performance with complementary LVDS outputs, ideal of high speed data applications. Combined with a miniature surface mount package, and in-built enable/diasble tristate functionality, this VCXO is ideal for high speed networking and data transfer projects.
  • 40.0 ~ 250MHz
  • Complementary LVDS outputs
  • Multiplier-free design
  • Enable / disable tristate function
VIEW PRODUCT
GVXO-L58G
5.0 x 3.2 x 1.6mm

GVXO-L58G

1.8V VCXO with LVDS output and wide pulling range
The GVXO-L58G VCXO is available at ultra high frequencies of up to 2.1GHz and features LVDS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVDS Output
VIEW PRODUCT
GVXO-L58J
5.0 x 3.2 x 1.6mm

GVXO-L58J

2.5V VCXO with LVDS output and wide pulling range
The GVXO-L58J VCXO is available at ultra high frequencies of up to 2.1GHz and features LVDS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVDS Output
VIEW PRODUCT
GVXO-L58L
5.0 x 3.2 x 1.6mm

GVXO-L58L

3.3V VCXO with LVDS output and wide pulling range
The GVXO-L58L VCXO is available at ultra high frequencies of up to 2.1GHz and features LVDS output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • LVDS Output
VIEW PRODUCT
GVXO-M58G
5.0 x 3.2 x 1.6mm

GVXO-M58G

1.8V VCXO with CML output and wide pulling range
The GVXO-M58G VCXO is available at ultra high frequencies of up to 2.1GHz and features CML output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • CML Output
VIEW PRODUCT
GVXO-M58J
5.0 x 3.2 x 1.6mm

GVXO-M58J

2.5V VCXO with CML output and wide pulling range
The GVXO-M58J VCXO is available at ultra high frequencies of up to 2.1GHz and features CML output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • CML Output
VIEW PRODUCT
GVXO-M58L
5.0 x 3.2 x 1.6mm

GVXO-M58L

3.3V VCXO with CML output and wide pulling range
The GVXO-M58L VCXO is available at ultra high frequencies of up to 2.1GHz and features CML output, good frequency stability and wide pulling range of up to ±250ppm. This voltage controlled oscillator also features miniature 5.0 x 3.2mm ceramic package and low jitter performance.
  • 15.0MHz ~ 2.1GHZ
  • Wide Pullability
  • Ultra Low Noise
  • CML Output
VIEW PRODUCT
DIL-14 7.4mm height package
DIL-14

GVXO-25

5V VCXO High Performance
The GVXO-25 is no longer recommended for new designs, instead please consider the GVXO-41F for a more cost-effective solution for standard applications. The GVXO-25 does provide low phase noise characteristics, in addition to frequency pullability of ±200ppm. The GVXO-25 comes in a 14 pin DIL (full size) package, and has CMOS/TTL compatible output.
  • 1.0 ~ 52.0MHz
  • Wide pullability
  • Encapsulated crystal for high reliability
  • Fundamental mode for improved phase noise
VIEW PRODUCT
GVXO-27L
14.0 x 9.8 x 3.2mm

GVXO-27L

3.3V & 5V VCXO - High Freq Fundamental

Available over a wide range of frequencies, from 1.0MHz to 75.0MHz, the GVXO-27L voltage controlled oscillator offers superb low jitter performance and fast rise/fall time of 5ns maximum. This component also has a wide range of frequency pullability options, and is available with industrial operating temperature range.

  • 1.0 ~ 75.0MHz
  • Fundamental crystal up to 75MHz
  • HCMOS compatible output
  • Low jitter and fast rise / fall
VIEW PRODUCT
GVXO-27S
14.0 x 9.8 x 3.2mm

GVXO-27S

3.3V & 5V VCXO - High Freq Fundamental
The GVXO-27S voltage controlled oscillator provides a CMOS compatible output with excellent low jitter characteristics in a surface mount package. Available over a wide range of frequencies, from 1.0 ~ 75.0MHz, the GVXO-27S also features fast enable/disable time of 100ms maximum.
  • 1.0 ~ 75.0MHz
  • Fundamental crystal up to 75MHz
  • HCMOS compatible output
  • Low jitter and fast rise / fall
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-32L

3.3V & 5V VCXO - High Frequency
The GVXO-32L voltage controlled oscillator with 3.3V supply voltage and CMOS compatible output, comes encased within a popular telecoms surface mount package. Available at high frequencies from 52.0-160MHz, this component also features wide frequency pullability, driving ability of 15pF CMOS, and custom frequency stability options are available.
  • 52.0 ~ 160MHz
  • CMOS compatible output
  • Low jitter and fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-32S

3.3V & 5V VCXO - High Frequency
Available over a wide range of high frequencies, from 52.0 ~ 160MHz, the GVXO-32S offers the engineer superbly low jitter performance, whilst maintaining a fast start up time of only 10ms maximum. A range of frequency stability and frequency pullability options are available making this voltage controlled oscillator suitable for a range of applications.
  • 52.0 ~ 160MHz
  • CMOS compatible output
  • Low jitter and fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-34L

3.3V & 5V VCXO - Complementary PECL
The GVXO-34L, with 3.3V supply voltage, offers wide frequency pullability of up to ±100ppm at very high frequencies of up to 800MHz. With complementary LV-PECL output, the GVXO-34L comes in a popular telecoms-style package, making it suitable for a wide range of industries and applications.
  • 50.0 ~ 170MHz
  • Complementary LV-PECL or PECL outputs
  • Fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
The product image will be updated soon
14.0 x 9.8 x 6.0mm

GVXO-34S

3.3V & 5V VCXO - Complementary PECL
With a wide available frequency range from 50.0 - 170MHz, the GVXO-34S provides a wide frequency pullability of ±100ppm minimum. The popular telecoms package of this component ensures its suitability for a range of applications where complementary PECL output is required.
  • 50.0 ~ 170MHz
  • Complementary LV-PECL or PECL outputs
  • Fast rise / fall times
  • Popular telecomms package layout
VIEW PRODUCT
GVXO-36
20.6 x 14.0 x 5.0mm

GVXO-36

5V VCXO - High Frequency
With integral fundamental mode crystal, and available up to 80.0MHz, the GVXO-36 provides a low jitter output even at high frequencies. Encased within a sturdy surface mount package, this component features 15pF CMOS driving ability and high frequency CMOS output.
  • 12.0 ~ 80.0MHz
  • Fundamental mode crystal up to 50MHz
  • High frequency CMOS compatible output
  • Fast rise / fall times
VIEW PRODUCT
GVXO-37N
20.6 x 14.0 x 5.0mm

GVXO-37N

VCXO - Complementary ECL/PECL VHF Range
The Golledge GVXO-37N voltage controlled oscillator is perfect for projects that require very high frequencies (up to 170MHz) with negative supply. Available over a wide frequency range of 12.0 to 170MHz, the GVXO-37N produces complementary ECL output and allows wide frequency pullability of ±100ppm, with other options available.
  • 12.0 ~ 170MHz
  • Fundamental mode crystal up to 50MHz
  • Complementary ECL / PECL outputs
  • Fast rise / fall times
VIEW PRODUCT
GVXO-37P
20.6 x 14.0 x 5.0mm

GVXO-37P

VCXO - Complementary ECL/PECL VHF Range
The GVXO-37P voltage controlled oscillator features fast start up and fast rise / fall times, with inbuilt enable / disable tristate functionality. Available from 12.0~170MHz, this VCXO with positive 5.0V supply voltage is also optionally available with a range of frequency pullability and frequency stability characteristics.
  • 12.0 ~ 170MHz
  • Fundamental mode crystal up to 50MHz
  • Complementary ECL / PECL outputs
  • Fast rise / fall times
VIEW PRODUCT

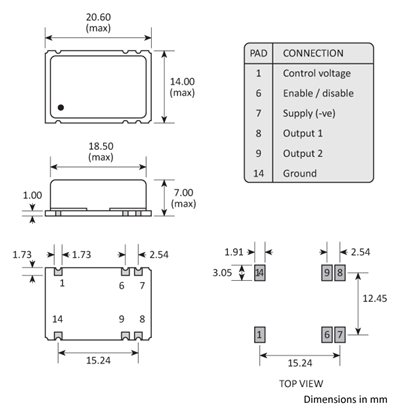

GVXO-38N
20.6 x 14.0 x 7.0mm

GVXO-38N

VCXO - Complementary ECL/PECL UHF Range
The GVXO-38N with negative supply voltage of -5V provides complementary ECL output at ultra high frequencies from 600 ~ 700MHz. This VCXO features voltage control with better than 10% linearity and negative slope. The GVXO-38N voltage controlled oscillator also features fast start up time of 10ms maximum, and commercial operating temperature range of -10 to +70°C.
  • 600 ~ 700MHz
  • Fundamental mode crystal @ 150~160MHz x 4
  • Complementary ECL / PECL outputs
  • Fast rise / fall times
VIEW PRODUCT
GVXO-38P
20.6 x 14.0 x 7.0mm

GVXO-38P

VCXO - Complementary ECL/PECL UHF Range
The Golledge GVXO-38P voltage controlled oscillator with +5V positive supply, uses a high reference frequency to produce UHF complementary PECL output. Available in ultra high frequencies of 600 ~ 700MHz, this VCXO also features excellent frequency stability and pullability options.
  • 600 ~ 700MHz
  • Fundamental mode crystal @ 150~160MHz x 4
  • Complementary ECL / PECL outputs
  • Fast rise / fall times
VIEW PRODUCT

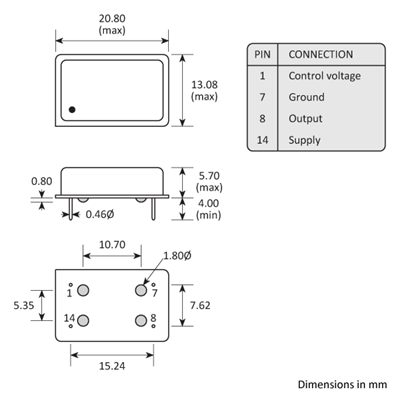

GVXO-41F
DIL-14

GVXO-41F

5V VCXO
If you need wide frequency pullability of up to ±200ppm at frequencies from 1.544 ~ 30.0MHz, then the GVXO-41F could be the component you need for your latest project. Requiring 5.0V supply voltage, the GVXO-41F voltage controlled oscillator is also optionally available at industrial operating tempaerture range.
  • 1.544 ~ 33.0MHz
  • Low cost for volume applications
  • Choice of pullability & stability
  • Express deliveries for non-standard items
VIEW PRODUCT
The thumbnail image of the DIL-8 package
DIL-8

GVXO-41H

5V VCXO
An excellent option for applicatons which require low cost, leaded components, the GVXO-41H voltage controlled oscialltor features half-size, 8-pin, industry-standard DIL package. Available at low frequencies from 1.544MHz to 30.0MHz, this component also features 5.0V operating supply voltage and is available in a wide range of frequency stability options, as tight as ±15ppm, and frequency pullability options as wide as ±200ppm.
  • 1.544 ~ 33.0MHz
  • Low cost for volume applications
  • Choice of pullability & stability
  • Express deliveries for non-standard items
VIEW PRODUCT
GVXO-42F
DIL-14

GVXO-42F

5V VCXO - High Frequency
The GVXO-42F features stand out frequency pullability of ±200ppm at frequencies from 33.0MHz up to 160MHz. Encased within a full-size 14-pin DIL package, the GVXO-42F is ideal for applications that require low cost, high frequency components.
  • 33.0 ~ 160MHz
  • Low cost for volume applications
  • Choice of pullability & stability
  • Express deliveries for non-standard items
VIEW PRODUCT
GVXO-43F
DIL-14

GVXO-43F

3.3V VCXO
The GVXO-43F is available from 1.544 ~ 33.0MHz and has a wide range of frequency stability and pullability options, up to ±15ppm and ±150ppm respectively. This component requires 3.3V supply voltage and is optionally available with industrial operating temperature range of -40 to +85°C.
  • 1.544 ~ 33.0MHz
  • Low cost for volume applications
  • Choice of pullability & stability
  • Express deliveries for non-standard items
VIEW PRODUCT
The thumbnail image of the DIL-8 package
DIL-8

GVXO-43H

3.3V VCXO
Perfect for lower frequency, low cost applications that require a voltage controlled oscillator, the GVXO-43H is available at frequencies from 1.544 ~ 30.0MHz and offers a wide range of frequency stability and pullability options.
  • 1.544 ~ 33.0MHz
  • Low cost for volume applications
  • Choice of pullability & stability
  • Express deliveries for non-standard items
VIEW PRODUCT
GVXO-44F
DIL-14

GVXO-44F

3.3V VCXO - High Frequency
Offering high frequency output of up to 125MHz in a DIL-14 Package, the GVXO-44F voltage controlled oscillator also features a wide range of possible frequency stability and pullability options. The GVXO-44F has 3.3V supply voltage requirement and has driving ability of 30pF CMOS.
  • 33.0 ~ 125MHz
  • Low cost for volume applications
  • Choice of pullability & stability
  • Express deliveries for non-standard items
VIEW PRODUCT
GVXO-52
7.5 x 5.2 x 1.6mm

GVXO-52

SM VCXO Complementary LVDS
The GVXO-52, with industry-standard 6-pad surface mount package, offers wide frequency pullability of up to ±150ppm. This VCXO is available over an exceptionally wide frequency range of 12.0-800MHz with complementary LVDS outputs, and has 3.3V supply voltage requirement.
  • 12.0 ~ 800MHz
  • Frequencies up to 800MHz
  • Complementary LVDS outputs
  • Fast rise / fall times
VIEW PRODUCT
The Golledge GVXO-523 VCXO
5.0 x 3.2 x 1.3mm

GVXO-523

3.3V SM VCXO - 4 pad
The GVXO-523 voltage controlled oscillator, with 5.0 x 3.2mm miniature suface mount package and industry-standard 4-pad configuration, features excellent low jitter characteristics and fast start up time.
  • 1.5 ~ 54.0MHz
  • Fundamental crystal up to 61.40MHz
  • Choice of pullability and stability
  • Miniature SM package
VIEW PRODUCT

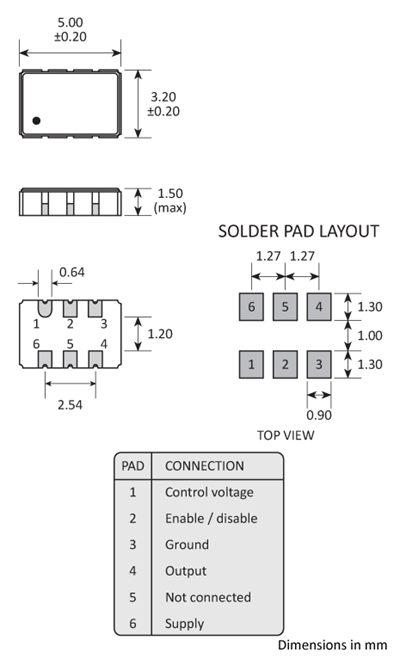

GVXO-533
5.0 x 3.2 x 1.5mm

GVXO-533

3.3V VCXO - 6 pad

The GVXO-533 is available over a very wide frequency range, from 1.0 ~ 125MHz. With an industry-standard 6-pad configuration and miniature 5.0x3.2mm surface mount package, the GVXO-533 is suitable for a wide range of possible applications, also offering a range of frequency stability and pullability options.

  • 1.0 ~ 125MHz
  • High frequency using mesa technology
  • Choice of pullability and stability
  • Enable / disable tristate function
VIEW PRODUCT

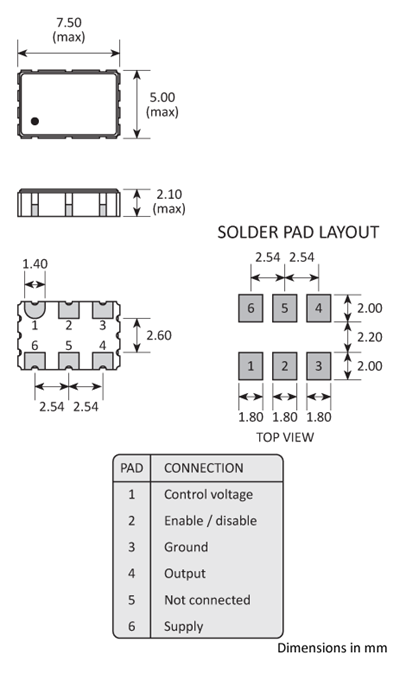

GVXO-53F
7.5 x 5.0 x 2.1mm

GVXO-53F

3.3V VCXO
The GVXO-53F offers excellent performance at high frequencies thanks to mesa technology. This 6 pad VCXO is available up to 125MHz with a choice of pullability and stability options, and is available with industrial operating temperature range of -40 to +85°C.
  • 1.0 ~ 125MHz
  • High frequency using mesa technology
  • Choice of pullability and stability
  • Enable / disable tristate function
VIEW PRODUCT
An obsolete Golledge product
7.5 x 5.2 x 1.6mm

GVXO-54

3.3V VCXO Complementary LV-PECL

The GVXO-54 voltage controlled oscillator is available up to very high frequencies of 800MHz and provides complementary LV-PECL output and ±150ppm frequency pullability, requiring 3.3V supply voltage.

  • 12.0 ~ 800MHz
  • Frequencies up to 800MHz
  • Complementary LV-PECL outputs
  • Fast rise / fall times
VIEW PRODUCT
GVXO-55F
7.5 x 5.0 x 2.1mm

GVXO-55F

5V VCXO
The GVXO-55F provides a voltage controlled oscillator built around a high frequency fundamental mode crystal, available up to 78MHz. With 5.0V supply voltage, voltage control provides better than 10% linearity over the voltage range +2.5 ±2.0V. Industrial operating temperature range is also available making this VCXO suitable for a range of applications.
  • 1.0 ~ 78.0MHz
  • Fundamental crystal up to 78.0MHz
  • Choice of pullability and stability
  • Enable / disable tristate function
VIEW PRODUCT
GVXO-753D
7.0 x 5.0 x 1.8mm

GVXO-753D

3.3V VCXO
The GVXO-753 provides a highly cost effective 3.3V VCXO solution. This 4-pad voltage controlled oscillator offers a range of frequency pullability and frequency stability options and is available with industrial operating temperature range of -40 to +85°C.
  • 1.5 ~ 54.0MHz
  • Low cost for volume applications
  • Choice of pullability & stability
VIEW PRODUCT
GVXO-753F
7.0 x 5.0 x 1.8mm

GVXO-753F

3.3V VCXO
Providing a highly cost effective 3.3V VCXO solution for volume applications, the 6-pad GVXO-753F also features in-built enable/disable tristate functionality. The GVXO-753F also allows a choice of frequency stability and pullability options and is available with industrial operating temperature range of -40 to +85°C making it an ideal VCXO solution for a range of high volume applications.
  • 1.5 ~ 54.0MHz
  • Low cost for volume applications
  • Choice of pullability & stability
VIEW PRODUCT
VCXO2EV
5.0 x 3.2 x 1.7mm

VCXO2EV

CMOS VCXO Harsh Environments
The VCXO2EV is the ideal voltage controlled oscillator solution for harsh environments. Available with good pulling range over multiple operating temperature range options, including the extreme temperature range of -10 to +210°C, the VCXO2EV also features fast start up and good shock and vibration resistance up to 10,000g.
  • 5.0 ~ 40.0MHz
  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 210°C
  • High stability & low ageing under extremes
VIEW PRODUCT
VCXO2HV
5.0 x 3.2 x 1.7mm

VCXO2HV
The VCXO2HV voltage controlled oscillator is available at frequencies up to 130MHz and with military operating temperature range of -55 to +125°C. This VCXO features a fundamental mode crystal for low phase noise performance.
  • 40.0 ~ 130MHz
  • Military temperature range -55+125°C
  • Low noise - fundamental crystal
  • High shock & vibration resistance
VIEW PRODUCT
The Golledge GVXO-523 VCXO
L x W x Hmm

Custom VCXO

Golledge Custom VCXO
A short description of Golledge Custom VCXOs
  • Custom options
  • Your spec here
  • Tell us your requirements
  • Design advice
VIEW PRODUCT

What are VCXOs?

VCXO stands for “Voltage Controlled Crystal Oscillators”.

These oscillators are used in electronics to generate a periodic signal with high stability and accuracy that is also tunable. This stability and accuracy of the oscillator allow it to provide a stable clock signal for digital integrated circuits so that they can be used for timekeeping in various technological applications, such as telecommunications, data transmission, and frequency synthesis.

The frequency of the oscillator is varied using a variable capacitance (varicap) diode used in reverse bias. This tunes the resonance of the crystal circuit slightly away from the resonance of the crystal.

VCXOs from Golledge

We offer a full range of VCXO products to help you create the product or appliance that you need. Visit our website here and use our product search to find the exact voltage-controlled oscillator you need.

All of our VCXO products are chosen for their combination of highly competitive commercial pricing, reliable build and large range of developed frequencies and specifications.
