VCXO2HV

VCXO2HV

  • Military temperature range -55+125°C
  • Low noise - fundamental crystal
  • High shock & vibration resistance
  • Optional tinned pads (Ag/Cu/Zn)
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Absolute pulling range (max)
* see note below
B
C
Terminations
T
Quantity / Special Request

Please specify the quantity you require below.

The VCXO2HV is available supplied either on tape and reel or packaged within trays. T&R standard pack size is 250~1000pcs and standard tray size is 128pcs per tray. Partial quantities may be supplied on tape (no reel), partial trays, or in bulk.
Product Description
The VCXO2HV voltage controlled oscillator is available at frequencies up to 130MHz and features fundamental mode crystal for optimal low phase noise performance. Ideal for military and defence applications, the VCXO2HV features excellent shock and vibration resistance, good pulling range options at operating temperature range of -55 to +125°C, and also has optional gold plated or tinned pad to ensure the correct terminations for your specific application.  The VCXO2VH has a miniature surface mount package measuring just 5.0 x 3.2mm, CMOS output, and requires 3.3V supply voltage.
Specifications
Frequency range 40.0 ~ 130MHz
Dimensions 5.0 x 3.2 x 1.7mm
Supply voltage (VDD) +3.3V (±5%)
Voltage control (VCTL) +1.65V ±1.65V
Positive slope, 10% linearity
Storage temperature range -65 to +125°C
Supply current (no load) 10mA max @ 40.0MHz
20mA max ≤100.0MHz
25mA max @ 130.0MHz
Driving ability CMOS
Load 3pF min, 27pF max
Logic levels ‘0’ level = +0.4V max
‘1’ level = VDD-0.5V min
Start up time 5ms max
Waveform symmetry 40:60 max @ 50%VDD
Rise / fall times 2ns max (@15pF)
Shock resistance 5,000g, 0.3ms ½-sine
Vibration resistance 20g rms 10.0 ~ 2,000Hz
Soldering condition 260°C, 10 sec max

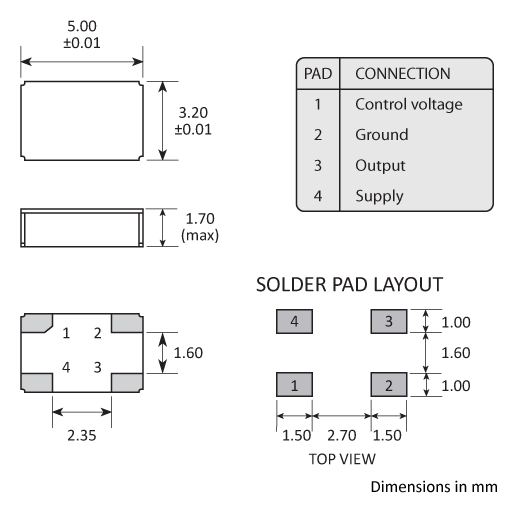

Package Drawing
Package footprint and pad configuration drawing for the Golledge VCXO2EV VCXO showing full dimensions.
Ordering Information

To request a quotation for the VCXO2HV please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction
Ceramic base and lid
Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
