GVXO-38N VCXO - Complementary ECL/PECL UHF Range
- Fundamental mode crystal @ 150~160MHz x 4
- Complementary ECL / PECL outputs
- Fast rise / fall times
- Enable / disable tristate function
- Metal SM package with glass epoxy base
Specifications
Frequency range |
622.08MHz 666.51428MHz 669.32658MHz Other (600 ~ 700MHz) |
Dimensions |
20.6 x 14.0 x 7.0mm |
Voltage control (VCTL) |
-2.5V ±2.0V, 10% linearity, -ve slope |
Operating temperature range |
-10 to +70°C |
Storage temperature range |
-40 to +85°C |
Supply voltage |
-5.2V (±5%) |
Supply current |
120mA max |
Output |
Complementary ECL |
Test load |
RTT = 50Ω VTT = -2.0V |
Logic levels |
‘0’ level = -1.60V max ‘1’ level = -1.16V min |
Waveform symmetry |
40:60 max @ 50%VP-P |
Start up time |
10ms max |
Rise / fall time |
0.5ns max (20% ~ 80%VP-P) |
Enable / disable function |
Control via pad 6 |
Soldering condition |
Reflow, 240°C max |

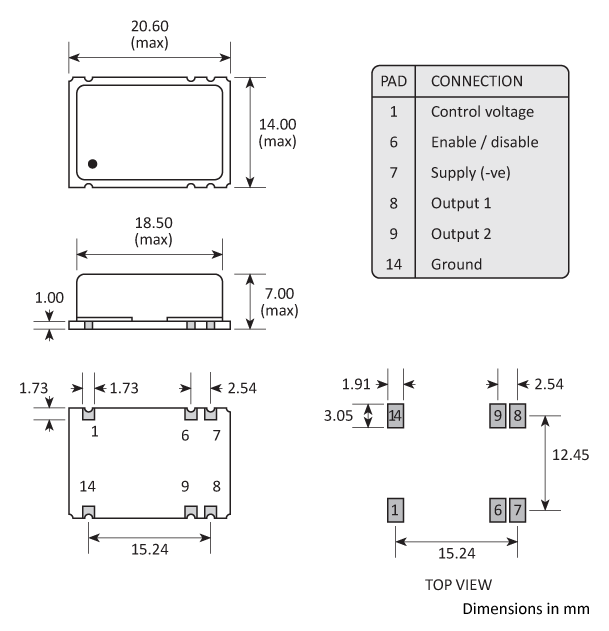

Package Drawing

Ordering Information
To request a quotation for the GVXO-38N please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Enable / Disable Function
Input (pad 6) | Output 1 (pad 8) | Output 2 (pad 9) |
---|---|---|
Open | Active | Active |
'1' level VIH | High ('1') | Low ('0') |
'0' level VIL | Active | Active |
Tape & Reel Specification

Handling & Storage
Human Body Model (HBM) 1A (250V to < 500V)
Moisture Sensitivity Level (MSL): 1
Construction
Compliance
RoHS compliant with no exemptions.
