GVXO-36 | 5V VCXO - High Frequency

Configurable Options
Frequency
kHz MHz GHz
Frequency pullability
Any
±50ppm min	N
±100ppm min	S
Other value:

Frequency stability ^* see note below
Any
±50ppm max	B
±25ppm max	C
Other value:

Operating temperature range
Any
-10 to +70°C
-40 to +85°C	I

Product Description

Thanks to its integral fundamental mode crystal, and low jitter internal oscillator circuit, the GVXO-36 provides a low jitter output even at high frequencies. Available from 12.0 to 80.0MHz, with fundamental mode crystal up to 50.0MHz, this voltage controlled oscillator is suitable for a wide range of applications that require CMOS output at high frequency, such as telecoms. The GVXO-36 also comes encased within a sturdy surface mount package, and features 15pF CMOS driving ability, fast start up time of 10ms maximum, and fast rise / fall time of 3ns maximum. Industrial operating temperature range of -40 to +85°C is also optionally available.

Specifications

Frequency range	12.0 ~ 80.0MHz
Dimensions	20.6 x 14.0 x 5.0mm
Voltage control (V_CTL)	+2.5V ±2.0V, 10% linearity
Storage temperature range	-40 to +85°C
Supply voltage (V_DD)	+5.0V (±5%)
Supply current	50mA max
Driving ability	15pF CMOS
Logic levels	‘0’ level = 10%V_DD max ‘1’ level = 90%V_DD min
Waveform symmetry	40:60 max @ 50%V_DD
Start up time	10ms max
Rise / fall time	3ns max (20% ~ 80%V_DD)
Soldering condition	Reflow, 240°C max

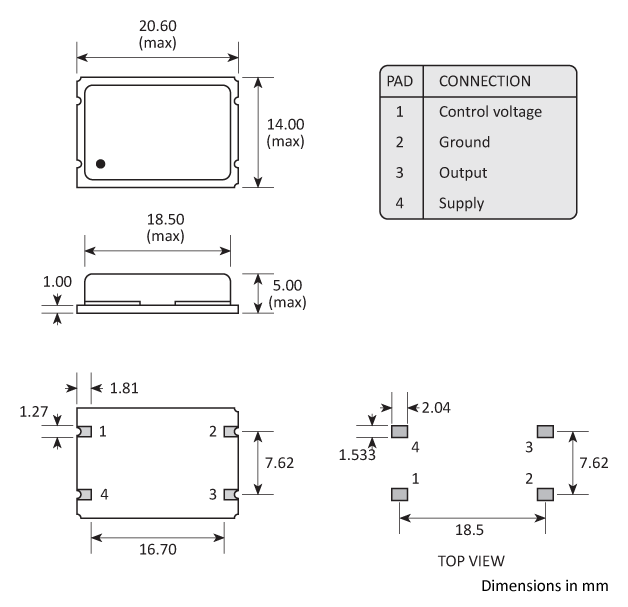

Package Drawing

Package footprint and pad configuration drawing for the Golledge GVXO-36 VCXO showing full dimensions.

Ordering Information

To request a quotation for the GVXO-36 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
