HCD210 OCXO Sine Output

  • Frequencies up to 100MHz
  • Internal multiplier above 50.0MHz
  • Single oven & oscillator supply
  • 12V supply standard, 15V or 18V optional
  • Custom options available
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The HCD210 is supplied 1 pc per box.
Product Description
The HCD210 OCXO with SINE output features 70.0 x 50.0 x 40.0mm package and is available with supply voltage 12.015.018.0V at frequencies from 5.0 ~ 100MHz.

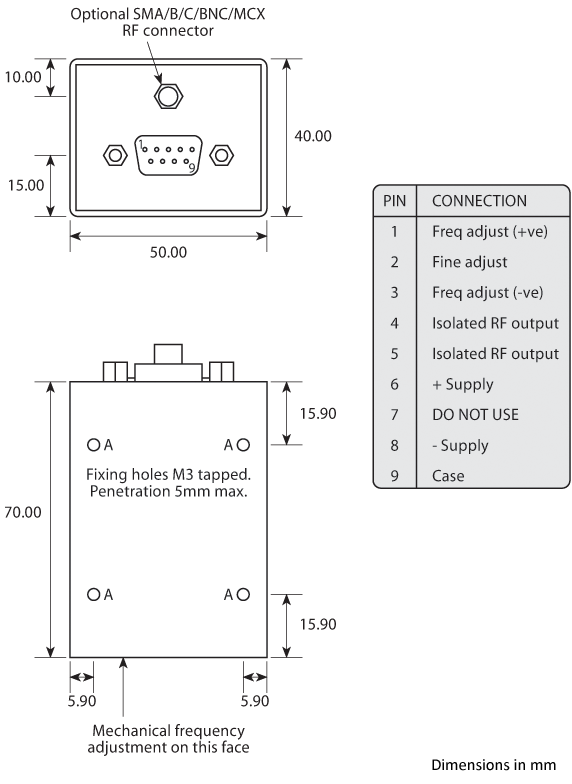

Package Drawing
Golledge 70.0 x 50.0mm chassis mount ocxo
Ordering Information

To request a quotation for the HCD210 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction
Shielded metal enclosure
Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
