The 10-pad 3.7x2.5 package Golledge Real Time Clock

RV8523C3

RTC I2C bus Low Power

  • Ultra low power consumption (130nA)
  • AEC-Q200 compliant option
  • Compliant with I2C-Bus interface (400kHz)
  • Backup battery input (internal switchover)
  • Programmable alarm, timer and interrupt
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The RV8523C3 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

If you're looking for an all-in-one sloution at low supply voltages with good current consumption performance the RV852C3 fits the bill. With supply voltages as low as 1.2V, and current consumption as low as only 130nA in time-keeping mode the RV8523C3 module can save time and procurement costs. FeaturingI2C bus interface and good shock and vibration performance, this module is also available with AE-Q200 qualification and full PPAP documentation on request. If you're looking for something with cutting-edge power consumption you may wish to consider the RV1805C3, or for an ultra-miniature package with highly competitive pricing the RV4162C7.

Package Drawing

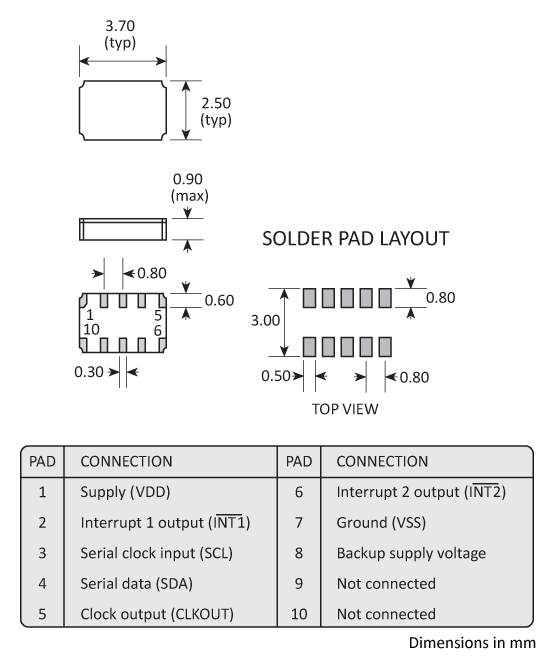

Package footprint and pad configuration drawing for the Golledge RV8523C3 Real Time Clock showing full dimensions.
Ordering Information

To request a quotation for the RV8523C3 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our RV8523C3 is included in the following design libraries. Click to download the library of your choice.


Autodesk Eagle

Altium

Pulsonix
Tape & Reel Specification
Tape and Reel specifications

A:178* B:12 C:4 D:2.7 E:4 F:1 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction

Ceramic package

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
