The 10-pad 5032 package Real Time Clock from Golledge

RV8564C2

RTC I2C bus

  • AEC-Q200 compliant option
  • Compliant with I2C-Bus interface (400kHz)
  • Built in crystal for adjustment-free operation
  • Programmable alarm, timer and interrupt functions
  • Low power consumption
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The RV8564C2 is supplied on tape and reel. 1k or 5k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Although no longer recommended for new designs, the RV3029C2 real time clock module does offer excellent power consumption specifications as good as 250nA for existing designs with I2C bus 2-wire serial interface. RTC built-in functions include standard clock and calendar functions, with year tracking and leap-year flagging. For new designs please consider the RV1805C3 which features ultra-low power consumption and a host of additional functionality with more competitive pricing. For our most competitive solution please also consider the RV4162C7.

Package Drawing

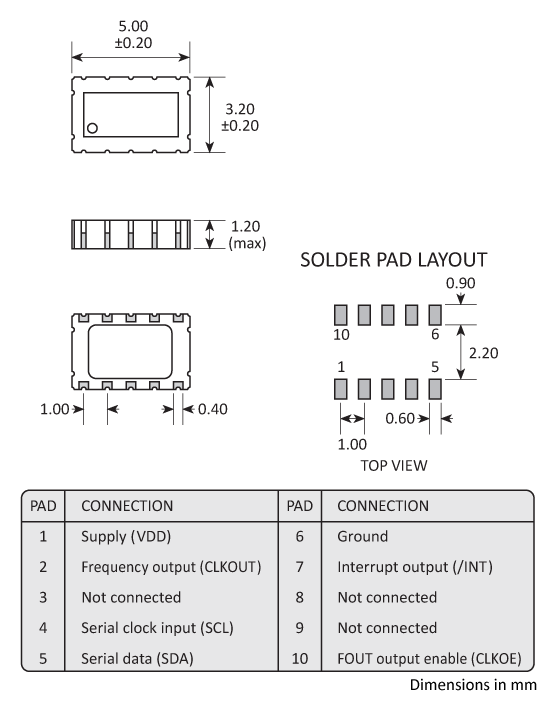

Package footprint and pad configuration drawing for the Golledge RV8564C2 Real Time Clock showing full dimensions.
Ordering Information

To request a quotation for the RV8564C2 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications

A:178* B:12 C:5.3 D:3.5 E:8 F:1.4 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction

SON 10-pin ceramic package with glass lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
