RV4162C7 | RTC I<sup>2</sup>C bus

Product Description

Perfect for cost-sensitive high volume applications where you need an all-in-one solution to help with space saving and procurement costs, the RV4162C7 with I²C bus interface has a tiny 3.5 x 1.5mm footprint package. This uncompensated RTC module has good frequency tolerance of ±10ppm at 25ºC and comes with operating temperature range fo -40 to +80ºC as standard. The RV4162C7 also features standard 24 hour clock functionality down to hundreths of seconds measurement. Standard calendar functionality includes date, month, year and cnetury tracking with leap year compensation. This RT also features alarm setting and a watchdog function.

Package Drawing

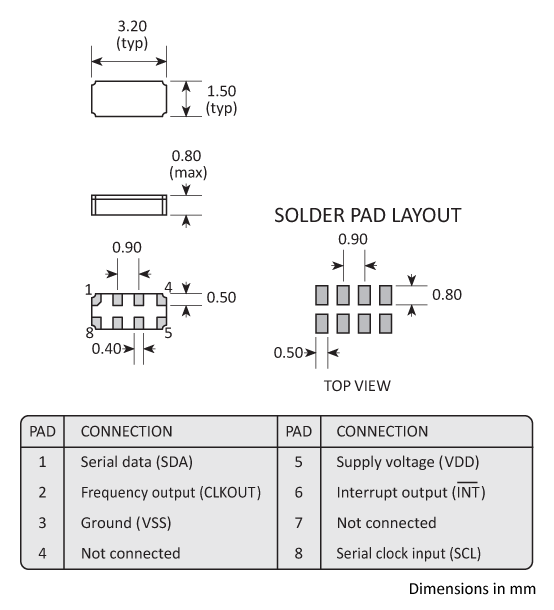

Package footprint and pad configuration drawing for the Golledge RV4162C7 Real Time Clock showing full dimensions.

Ordering Information

To request a quotation for the RV4162C7 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
