RV3049C3 | RTC SPI Bus

Configurable Options
Time accuracy:
±3ppm max (0.26s/day) @ 25°C
±6ppm max (0.52s/day) -40+85°C	A
±25ppm max (2.17s/day) -40+85°C	B
±8ppm max (0.70s/day) -40+125°C	D
±30ppm max (2.6s/day) -40+125°C	E
Operating temperature range:
-40 to +85°C
-40 to +125°C	see above
Qualification:
Commercial
AEC-Q200 (automotive)	A

Product Description

Ideal for engineers seeking an all-in-one solution with 4-wire SPI bus interface, the RV3049C3 miniature real time clock module features a wealth of features in addition to the standard 24 hour clock and leap-year flag functionality calendar. Smart temperature compensation ensures tight stability of up ±8ppm (equivalent to 0.7s per day) over the widest available temperature range of -40 to +125ºC, and only ±6ppm (equivalent to 0.56s per day) over more narrow ranges. The RV3049C3 also includes backup battery input with switchover functionality, programmable trickle charge circuitry, an integrated temperature sensor with digital output, and 8 bytes user RAM and 2 bytes EEPROM. Good shock and vibration resistance and optional AEC-Q200 qualification (with full PPAP documentation) the RV3049C3 is a versatile component suitable for a wide range of uses.

Specifications

Frequencies (selectable):	32.768kHz, 1024Hz, 32Hz & 1Hz
Frequency tolerance @25°C:	±10ppm typ, ±20ppm max
Time accuracy:	±3ppm max (0.26s/day) @ 25°C ±6ppm max (0.52s/day), -40+85°C ±25ppm max (2.17s/day), -40+85°C
Storage temperature range:	-55 to +125°C
Supply voltage:	SPI bus active 1.8 ~ 5.5V Time keeping mode 1.3 ~ 5.5V
Supply current (V_DD=3.0V)	0.8µA typ, 1.0µA max
Shock and vibration resistance:	±5ppm, 5,000g, 0.3ms, ½ sine ±5ppm, 20g, 10.0 ~ 2,000Hz
Soldering condition:	Reflow, 260°C, 20sec max

Package Drawing

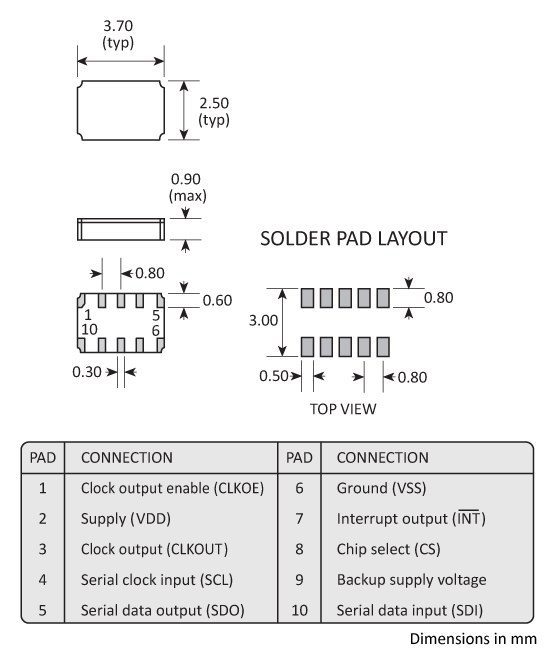

Package footprint and pad configuration drawing for the Golledge RV3049C3 Real Time Clock showing full dimensions.
