The 10-pad 5032 package Real Time Clock from Golledge

RV3049C2

RTC SPI Bus

  • Temperature compensated accuracy
  • AEC-Q200 compliant option
  • Compliant with 4-wire SPI bus
  • Backup battery input (internal switchover)
  • Programmable alarm, timer and interrupt
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The RV3049C2 is supplied on tape and reel. 1k or 5k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Although no longer recommended for new designs, the RV3049C2 real time clock module with SPI bus interface does offer a range of excellent specifications and additional funtionality for existing designs. Smart temperature compensation means this component is suitable for a wide range of applications, including external metering, with exellent temperature stability options available covering operating temperature ranges as wide as -40 to +125ºC. RTC built-in functions include standard clock and calendar functions, with year tracking and leap-year flagging, and additional specialised functions include backup battery input with internal switchover function, programmable trickle-charge circuitry, integrated temperature sensor with digital output, and 8 bytes of RAM and 2 bytes of EEPROM. For new designs please consider the RV3049C3 which features the same functionality and specifications but within a smaller 3.7 x 2.5mm package and is more competitively priced.

Package Drawing

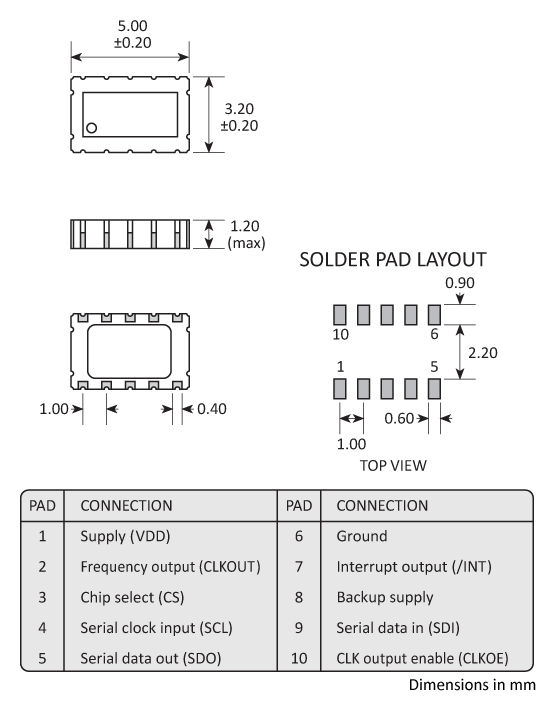

Package footprint and pad configuration drawing for the Golledge RV3049C2 Real Time Clock showing full dimensions.
Ordering Information

To request a quotation for the RV3049C2 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications

A:178* B:12 C:5.3 D:3.5 E:8 F:1.4 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction

SON 10-pin ceramic package with glass lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
