OV7604C7 32.768kHz Low Power SM Oscillator

  • Ultra low power consumption
  • World's smallest LF oscillator
  • Tight frequency tolerance
  • Industrial and extended temperature ranges
  • High shock and vibration resistance
DOWNLOAD PDF
Configurable Options
ParameterOption Code

The OV7604C7 has no configurable options.
Please see the specifications table for more details or contact our team today if you have other specification requirements.

Quantity / Special Request

Please specify the quantity you require below.

The OV7604C7 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.
Product Description
The OV7604C7 oscillator is available at 32.768kHz and features a range of excellent frequency and temperature stability options. Find full specifications, including all configurable options here.

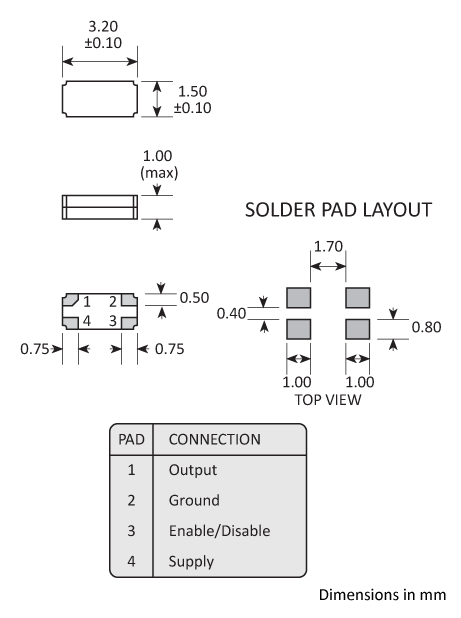

Package Drawing
Package footprint and pad configuration drawing for the Golledge OV7604C7 Oscillator showing full dimensions.
Ordering Information

To request a quotation for the OV7604C7 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models
Our OV7604C7 is included in the following design libraries. Click to download the library of your choice.

Autodesk Eagle

Altium

Pulsonix
Enable / Disable Function
Input (pad 3) Output (pad 1)
'1' level Enabled
'0' level Disabled

Note: Pad 3 should not be allowed to float

Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
A:178 B:12 C:3.5 D:1.8 E:4 F:1.5 G:80 H:21
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction
Ceramic base and lid
Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS RoHS compliant with no exemptions.
