GXO-U103H 3.3V Tristate Oscillator
- Custom frequencies available
- Industrial temperature range option
- Tight tolerance options
- Enable / disable tristate function

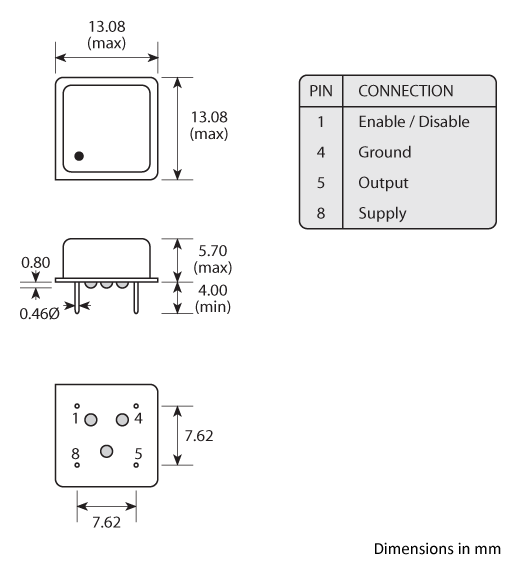

Package Drawing
Ordering Information
To request a quotation for the GXO-U103H please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Enable / Disable Function
| Input (pin 1) | Output (pin 5) |
|---|---|
| Open | Enabled |
| '1' level | Enabled |
| '0' level | High Impedance |
Handling & Storage
Human Body Model (HBM) 1A (250V to < 500V)
Moisture Sensitivity Level (MSL): 1
Construction
Compliance
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions.
