GSX-852 | SM Crystal

Configurable Options
Frequency
kHz MHz GHz
Calibration tolerance
Any
±30ppm	3
±50ppm	5
Other value:

Temperature stability
Any
±30ppm	3
±50ppm	5
±100ppm	C
Other values (±20ppm ~ ±100ppm)

Operating temperature range
Any
-10 to +60°C	1
-20 to +70°C	2
-40 to +85°C	4
Other value:

Circuit condition
Any
16pF	D
18pF	E
30pF	J
Series resonant	S
Other value:

Oscillation mode
Any
Fundamental (7.3728 ~ 40.0MHz)	F
3rd overtone (30.0 ~ 60.0MHz)	3

Product Description

The GSX-852 crystal is available at frequencies between 7.3728 ~ 60.0MHz and features a range of excellent frequency tolerance and temperature stability options. Find full product specifications and configure your product here.

Specifications

Frequency range	7.3728 ~ 60.0MHz
Storage temperature range	-40 to +90°C
Static capacitance (C₀)	7pF max
Equivalent series resistance (max)	80Ω (7.3728 ~ <10.0MHz) 60Ω (10.0 ~ <16.0MHz) 50Ω (16.0 ~ 40.0MHz, fundamental) 80Ω (30.0 ~ 60.0MHz, 3rd OT)
Ageing	±3ppm max first year
Test drive level	100µW
Soldering condition	260°C, 10 sec x2 max

Package Drawing

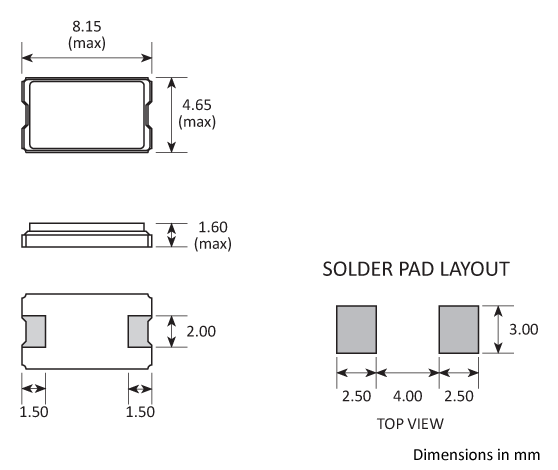

Package footprint and pad configuration drawing for the Golledge GSX-852 Crystal showing full dimensions.

Ordering Information

To request a quotation for the GSX-852 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
