GSM-2G-3G Antenna

GSM-2G-3G Antenna

  • Compact, lightweight.
  • Small, clear empty area necessary for placement.
  • Rugged, monolithic construction.
  • Multiband, High gain, uniform directivity.
  • Surface mountable design (SMD) with low-loss metallization that is easily solderable.
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

Product Description

2G/3G antenna consisting GSM / WCDMA is still the ongoing mobile communication solution today that everyone get used to. In addition to the 2G / 3G ceramic antenna, Cirocomm also provides FPC / PCB type antennas, which is the most customized model to fit in your device environment. We are good at antenna design with high efficiency and desired performance to meet your need.

Temperature Characteristics
jkhkhkkjhyiuyiuhkj


Standard Models

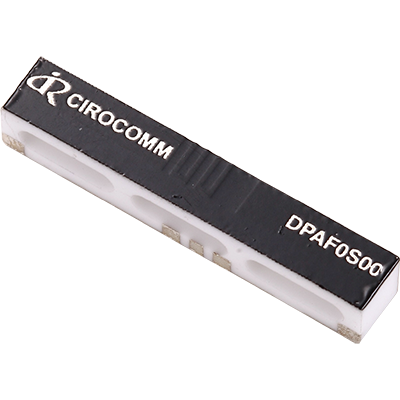

DPAF0S00 - SMD Chip Antenna - 30*5*5mm DPAF0S00 Combined GSM 4-Band and W-CDMA Antenna
Model Working Frequency LxWxH (mm) VSWR Polarization Impedance Operating Temperature
DPA900H 880~960 MHz , 1710~1880 MHz 29.8*6*5 2.5 max Linear 50 O -40?~85?

DPA900A - SMD Chip Antenna - 30*6*5 mm DPA900A GSM/WCDMA Dielectric Ceramic Antenna
Model Working Frequency LxWxH (mm) VSWR Polarization Impedance Operating Temperature
DPA900H 880~960 MHz , 1710~1880 MHz 29.8*6*5 2.5 max Linear 50 O -40?~85?
Construction
jkhkhkkjhyiuyiuhkj
2342 9798 979 97
9976 9876 98 978
