The package construction and pad configuration of the GSF-75 45R12B, a Golledge Crystal Filter

GSF-75 45R12B

7050 SM Monolithic 4-Pole Filter

  • 4 pole filter in one package
  • 45MHz centre frequency
  • Custom specifications available
  • Miniature SM package
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Centre Frequency
Quantity / Special Request

Please specify the quantity you require below.

Product Description

The 45R12B with centre frequency of 45.0MHz packs four poles within just one miniature surface mount package measuring just 7.2 x 5.2mm. Advanced space-saving tehcnology means compared with traditional two-package four-pole filters ths 45R12B can offer the engineer much greater board space for their design. With passband bandwidth of 12kHz at 3dB, the 45R12B also has low insertion loss of only 3.0dB and has guarenteed attenuation of -90±10 @ 80dB. Low in-band ripple of only 1.0dB ensures high signal fidelity.

Specifications
Centre Frequency 45.0MHz
Number of Poles 4
Pass Band (dB @ kHz) 3 ±6.0
Attenuation Band (dB @ kHz) 30 ±20.0
In-Band Ripple 1.0dB
Insertion Loss 3.0dB
Guaranteed Attenuation (dB @ kHz) 80 -910 ±10
Termination (Ω // pF) 950 // 1.2 (CC=8.0pF)
Operating Temperature Range -20 to +70°C
Number of Units 1
Package Drawing
Footprint
Ordering Information

Product name + model number eg: GSF-75 45R15B1 Option code X (eg GSF-75/X) denotes a custom spec.

CAD Models

Our products are included in the following design libraries. Click to download the library of your choice.


Autodesk Eagle

Altium

Pulsonix

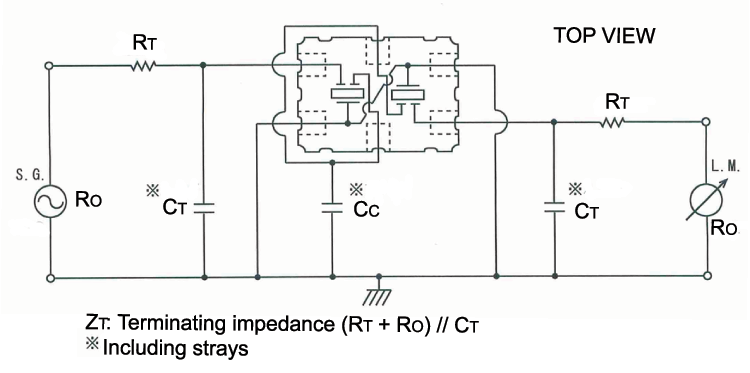

Test Circuit
Test Circuit

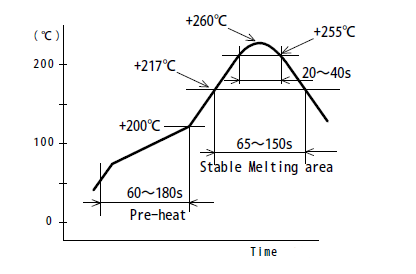

Soldering Profile
Solder reflow profile for the 45R12B
Tape & Reel Specification
Tape & Reel Specification

A:250 B:17.5 C:7.9 D:5.4 E:8.0 F1.7 G:80 H:21

Handling & Storage

testbigimg

Some additional text for the big image

Second para Text details

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Compliance

RoHS RoHS compliant with no exemptions.

REACH REACH Compliance Statement

Conflict Minerals Statement text and link to Conflict Minerals pdf statement

Halogen Free Statement Text and link to Halogen Free pdf statement

Ozone Depletion Statement Text and link to Ozone depletion statement pdf
