GSF-75 21R7B

GSF-75 21R7B 21.4MHz 4 pole crystal filter with 7.5kHz 3dB bandwidth

  • 4 pole filter in one package
  • Frequencies from 21.40 ~ 75.0MHz available
  • Custom specifications available
  • Miniature SM package
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

The 21R7B is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.
Package Drawing

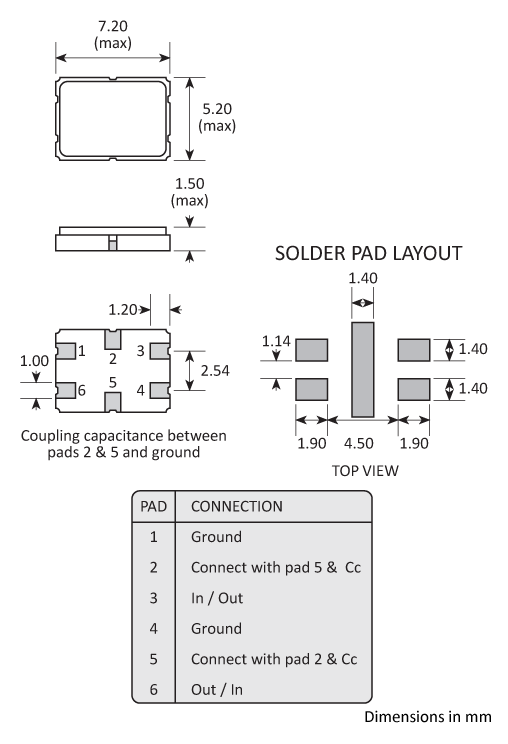

Package footprint and configuration drawing for a 7050 6-pad Golledge 4-pole Crystal Filter showing full dimensions.
Ordering Information

To request a quotation for the GSF-75 21R7B please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models
Our GSF-75 21R7B is included in the following design libraries. Click to download the library of your choice.

Autodesk Eagle

Altium

Pulsonix
Tape & Reel Specification
Tape and Reel specifications
A:250 B:17.5 C:7.9 D:5.4 E:8 F:1.7 G:80 H:21
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to < 500V)

MSL1 Moisture Sensitivity Level (MSL): 1

Construction
Ceramic base with metal lid
