GMCF-10 10G12D | 10.7MHz 8 pole crystal filter with 12.0kHz 6dB bandwidth

Product Description

MRP TEST - The GMCF-10 10G12D 8 pole crystal filter from Golledge with centre frequency of 10.7MHz features a 12kHz 6dB bandwidth. Discover full specifications, including insertion loss and package size here.

Specifications

Centre frequency	10.7MHz
Dimensions	18.5 x 12.0 x 15.0mm
Operating temperature range	-20 to +70°C
Number of poles	8
Pass band	-6dB @ ±6.0kHz min
Attenuation band	-90dB @ ±20.0kHz max
In-band ripple	2.0dB max
Insertion loss	3.5dB max
Guaranteed attenuation	-90dB max ±20.0 ~ ±300kHz
Termination	3300Ω // 2.0pF
Package style	F18/12P

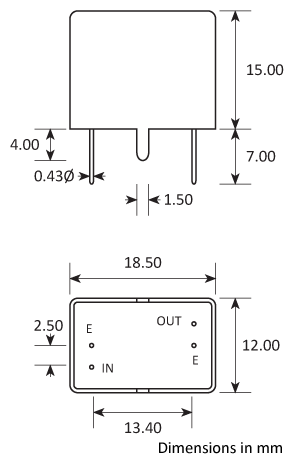

Package Drawing

Golledge 18x12mm leaded crystal filter package

Ordering Information

To request a quotation for the GMCF-10 10G12D please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
