The AEC-Q200 Standard, what does it really mean?

Murray Slovick speaks for many engineers when he states:

With this in mind we set out to try and provide a helpful summary of this sometime confusing standard.

The AEC-Q200 qualification is the global standard for stress resistance that all passive electronic components must meet, if they are intended for use within the automotive industry. Parts are deemed to be "AEC-Q200 qualified" if they have passed the stringent suite of stress tests contained within the standard.

The standards themselves can be found and downloaded using the link below, along with their sister qualifications AEC-Q100 and AEC-Q101.

http://www.aecouncil.com/AECDocuments.html

The need for an automotive specification standard for passive components was born, like many things, out of a change in the marketplace.

In the early 1990s electronic technology was becoming more and more prevalent outside of the automotive industry, meaning automotive companies were no longer the biggest priority for component suppliers. This meant it was becoming harder and harder for companies within this industry to specify parts to the strict standards required by the automotive environment.

The idea for a standard was original proposed by Gerald Servais of Delco Electronics (General Motors) and Jerry Jennings (Chrysler) at a meeting of the JEDEC (the global leader for the creation of microelectronics standards). Further conversation resulted in the founding group of Gerald Servais, Jerry Jennings, Robert Knoell (Ford) and Earl Fischer (Ford), creating the AEC Council. It was this group who, after consultation with experts within many companies, published the forerunner of the standard we see today.

The overall aim of the standard is to set a benchmark for temperature and pressure resistance and to ensure the consistency of safety specifications of passive components required for the automotive industry.

The creation of the standard removes a headache for a lot of engineers – as they no longer need to determine the individual specifications for many components.

When we say "automotive industry" what do we mean, what types of applications actually require automotive qualified parts?

The standard itself should always be your first port of call for this question, but we've included a summary here to try and help explain some of the intricacies.

AEC-Q200 Rev. D splits the level of qualification required for different parts of the industry into five grades, numbered 0 – 4. Grade 0 is the most stringent, requiring testing throughout the -50 to +150°C temperature range. Components graded to this level can be used in any application throughout the automotive industry, regardless of location within the vehicle. The level of testing required then decreases through the grades, grade 1parts which are suitable for most underhood uses are required to be tested through the -40 to +125°C temperature range, grade 2 parts are less stringently tested again and are suitable for use in hot spots within the passenger compartments, grade 3 for use within most of the passenger compartment, and down to grade 4 which is the qualification grade used for non-automotive parts.

The following table is taken from the standard as an example:

In order to meet a specific qualification grade the part has to undergo stress testing up to the highest temperature included within that grade.

All component suppliers will have a slightly different test procedure but here at Golledge the automotive qualified parts we supply are tested to ensure they are within strict limits. This includes subjecting an appropriate sample of the parts to rigorous rounds of testing. Here are some examples of the types of testing these parts under go before they are deemed qualified:

• A round of stringent electrical testing, followed by stress and then a further round of testing to ensure the electrical integrity of the component.
• The temperature resistance of the part is tested by exposing the samples to the maximum temperature within the required testing range for a prolonged period of time. This is then followed by temperature cycling throughout the entire temperature range, and then a further round of measurement to determine the resistance of the parts.
• Moisture resistance is tested by exposing the part to a high degree of humidity for a prolonged period of time.
• The operational life of the component is checked to ensure it passes the required benchmark.
• The resistance of the component to solvents is tested.
• Mechanical shock and vibration resistance are checked by exposing the components to high levels of g-force for prolonged periods of time, and by cycling the parts through periods of vibration.
• The solderability of the parts and their resistance to soldering heat is also checked to ensure they are fully operable which involves exposing the components to extremely high temperatures.
• The board flex and terminal strength of the components are also checked to ensure compliance with standard attachments five and six.
• Finally the parts undergo a strict visual inspection and a check to ensure their physical characteristics meet the required specifications.

As you can see there's a lot of testing that goes into qualifying a part to AEC-Q200 specifications which does add peace of mind about the integrity of the part, ultimately making for a safer product.

OK, so we know this one's a big question but where AEC-Q200 is concerned the future looks pretty stable. As more and more modern cars incorporate ever increasing amounts of electronic technology the need for standards to be applied to the components they require is ever greater.

The AEC Council hosts an annual workshop each spring where industry leaders meet to discuss the standard and its application to new and developing technology.

So you're swayed by the increased safety implications but how do you get AEC-Q200 qualified parts without them costing the earth?

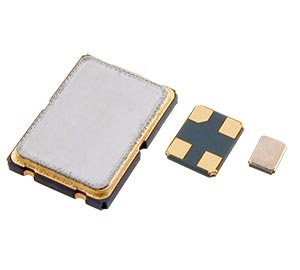

The following tips are specific to AEC-Q200 RF products (in particular automotive crystals and automotive oscillators) but most of them can be applied to non-qualified parts as well.
